1776252-4 | TE Connectivity

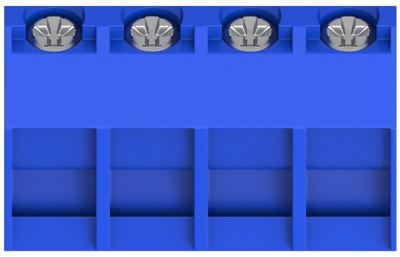

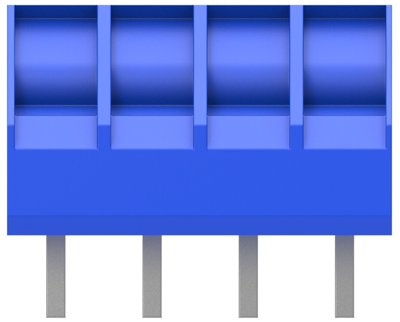

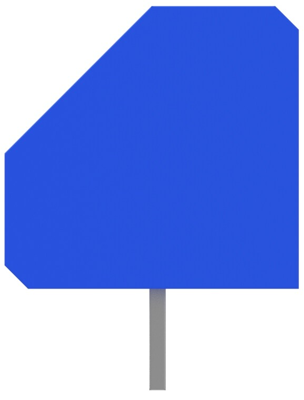

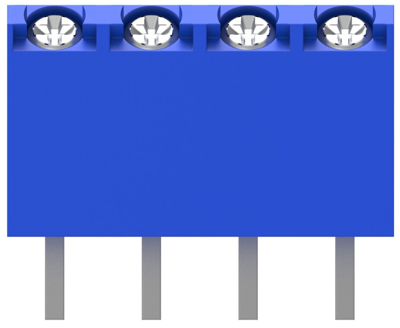

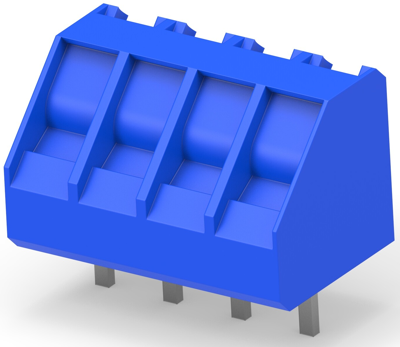

PCB terminal, 4 pole, pitch 5 mm, AWG 22-14, 10 A, screw connection, blue, 1776252-4
Order No.: 71P3447
EAN: 4099891628000
MPN:
1776252-4
Unit Price (€ / pc.)
2.7846 € *
Available: 0 pcs.
Available in 5 Days: 700 pcs.
Leadtime: 29 Weeks **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
35 pcs.
2.7846 €
200 pcs.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1776252-4, TE Connectivity
The 1776252-4 has full wire guard protection so that the screw does not press directly on the wire. This product is designed with a dovetail and special detent to provide a more reliable attachment after combining smaller sizes.
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 22-14 | |
| Width | 12.5 mm | |
| Colour | blue | |
| Height | 12 mm | |
| Cable cross-section | 0.3-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 4 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
