1986370-6 | TE Connectivity

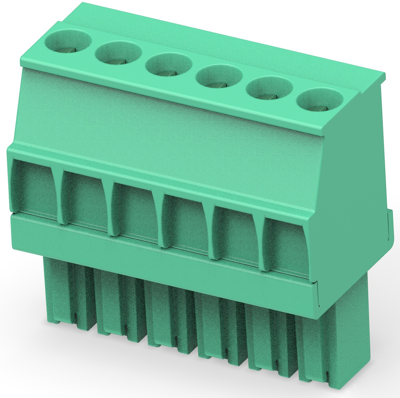

PCB terminal, 6 pole, pitch 3.5 mm, AWG 30-14, 11 A, cage clamp, green, 1986370-6
Order No.: 71P4012
EAN: 4099891628406
MPN:
1986370-6
Unit Price (€ / pc.)
7.4137 € *
Available: 0 pcs.
Available in 5 Days: 1,194 pcs.
Leadtime: 11 Weeks **
Total Price:
7.41 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4137 €
10 pcs.
6.8187 €
50 pcs.
6.1404 €
100 pcs.
5.5216 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1986370-6, TE Connectivity
The 1986370-6 allows additional configurations of wire access angles to be applied to standard header. This product mates with industry standard headers on the same centerline spacing.
Features
- End to end stackable without loss of centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC Controls
Technical specifications
| Connection | Käfigklemme | |
| AWG cross-section | AWG 30-14 | |
| Width | 10.35 mm | |
| Colour | grün | |
| Height | 12.6 mm | |
| Cable cross-section | 0,05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 11 A | |
| Pin number | 6-polig | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
