1986371-9 | TE Connectivity

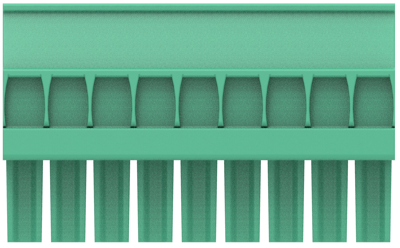

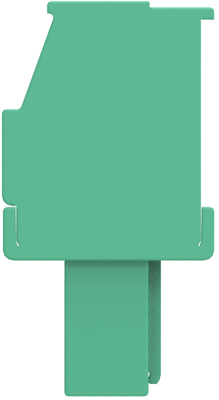

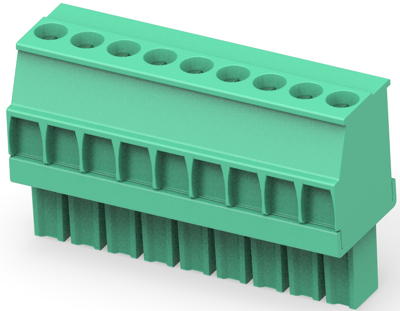

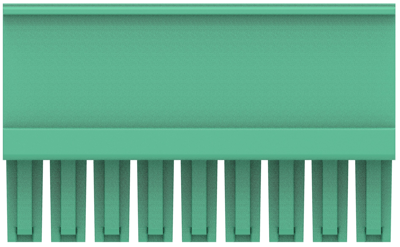

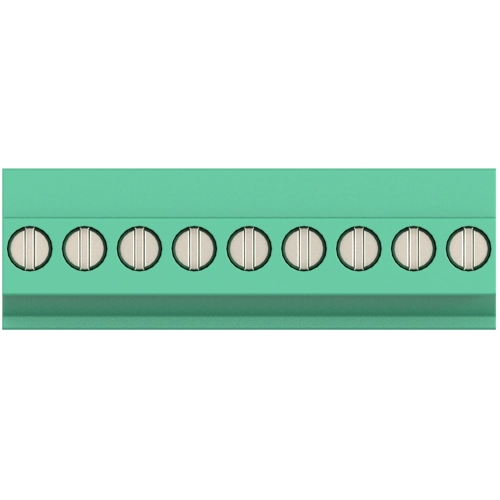

PCB terminal, 9 pole, pitch 3.5 mm, AWG 30-14, 11 A, cage clamp, green, 1986371-9
Order No.: 71P4022
EAN: 4099891628482
MPN:
1986371-9
Unit Price (€ / pc.)
10.7219 € *
Available: 0 pcs.
Available in 5 Days: 470 pcs.
Leadtime: 11 Weeks **
Total Price:
10.72 € *
Price list
Quantity
Price per unit*
10 pcs.
10.7219 €
45 pcs.
9.8294 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1986371-9, TE Connectivity
The 1986371-9 allows additional configurations of wire access angles to be applied to standard header. This product mates with industry standard headers on the same centerline spacing.
Features
- End to end stackable without loss of centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC Controls
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-14 | |
| Width | 10.35 mm | |
| Colour | green | |
| Height | 12.6 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 11 A | |
| Pin number | 9 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
