2-1986692-4 | TE Connectivity
PCB terminal, 24 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 2-1986692-4
Order No.: 71P5498
EAN: 4099891629380
MPN:
2-1986692-4
Unit Price (€ / pc.)
53.7166 € *
Available: 0 pcs.
Available in 5 Days: 24 pcs.
Leadtime: 11 Weeks **
Total Price:
53.72 € *
Price list
Quantity
Price per unit*
2 pcs.
53.7166 €
10 pcs.
43.3517 €
*incl. VAT plus shipping costs
**Subject to prior sale

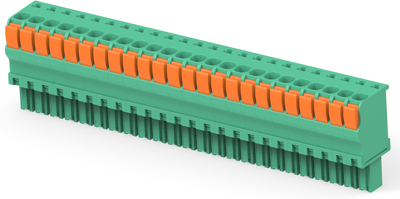

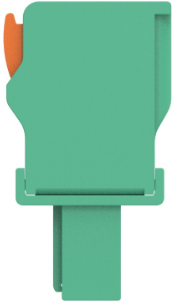

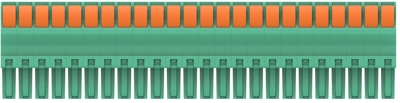

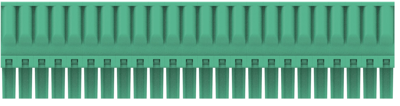

PCB terminal, 2-1986692-4, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 24 Position, 3.5 mm Centerline, 1 Row, Top wire entry angle, 30 - 14 AWG Wire size.
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial control
- HVAC Control
- Applications subject to certain types of vibrations
Technical specifications
| Connection | push-in spring connection | |
| AWG cross-section | AWG 30-14 | |
| Width | 11.65 mm | |
| Colour | green | |
| Height | 20.75 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 9 A | |
| Pin number | 24 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
