2-1986712-3 | TE Connectivity
PCB terminal, 23 pole, pitch 5.08 mm, AWG 30-12, 16 A, push-in cage clamp, green, 2-1986712-3
Order No.: 71P5511
EAN: 4099891629427
MPN:
2-1986712-3
Unit Price (€ / pc.)
32.6060 € *
Available: 0 pcs.
Available in 5 Days: 75 pcs.
Leadtime: 11 Weeks **
Total Price:
32.61 € *
Price list
Quantity
Price per unit*
1 pcs.
32.6060 €
10 pcs.
29.9999 €
25 pcs.
27.0011 €
50 pcs.
24.2998 €
*incl. VAT plus shipping costs
**Subject to prior sale

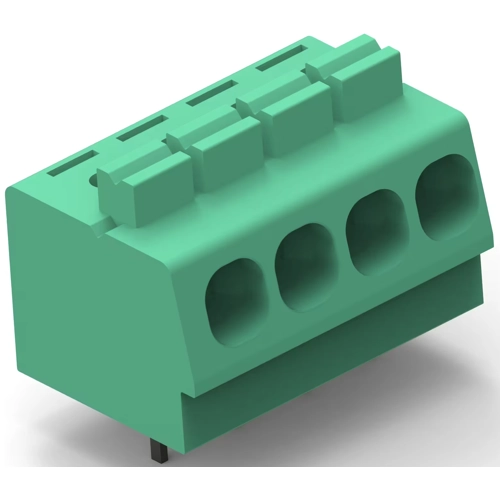

PCB terminal, 2-1986712-3, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 23 Position, 5.08 mm Centerline, 2 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Technical specifications
| Connection | Push-in Käfigklemme | |
| AWG cross-section | AWG 30-12 | |
| Width | 14.8 mm | |
| Colour | grün | |
| Height | 14.45 mm | |
| Contact distance | RM 5,08/5 | |
| Cable cross-section | 0,05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 16 A | |
| Pin number | 23-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
