2213934-6 | TE Connectivity
PCB terminal, 6 pole, pitch 5 mm, AWG 26-12, 15 A, screw connection, black, 2213934-6
Unit Price (€ / pc.)
5.6882 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 26 Weeks **
Total Price:
5.69 € *
Price list
Quantity
Price per unit*
100 pcs.
5.6882 €
1000 pcs.
4.6053 €
*incl. VAT plus shipping costs
**Subject to prior sale

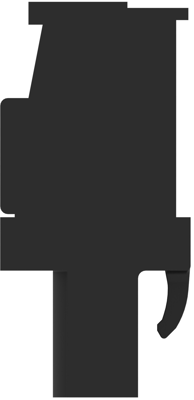

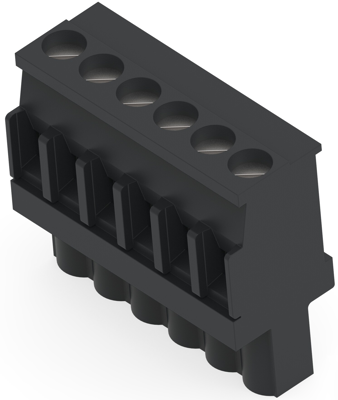

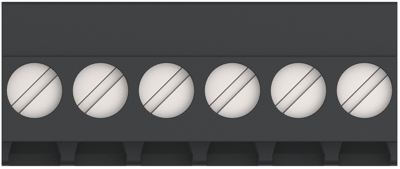

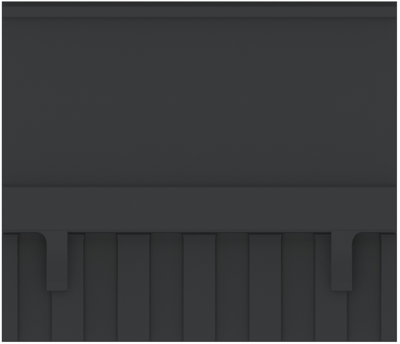

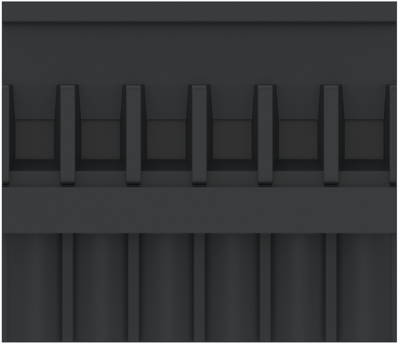

PCB terminal, 2213934-6, TE Connectivity
The 2213934-6 is a two-piece pluggable connector solution designed for seeking to switch from wave soldering to surface mount PCB processing. This product allows for simple reflow soldering and faster PCB assembly.
Applications
- HVAC Equipment and control
- Industrial control
- Security system
- Industrial lighting solutions
- Elevator/Escalator
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 17.6 mm | |
| Colour | black | |
| Height | 12.35 mm | |
| Cable cross-section | 0.13-3.31 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 6 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
