2336490-4 | TE Connectivity
PCB terminal, 4 pole, pitch 5 mm, 16 A, pin, black, 2336490-4
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Available in 5 Days: 2,330 pcs.
Leadtime: 16 Weeks **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
50 pcs.
1.8802 €
250 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

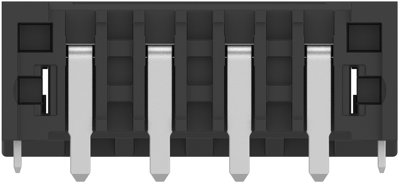

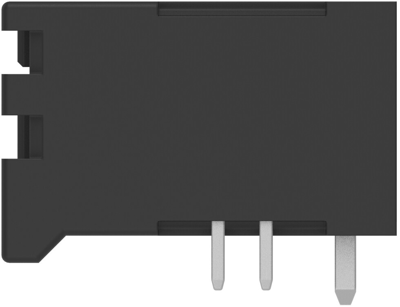

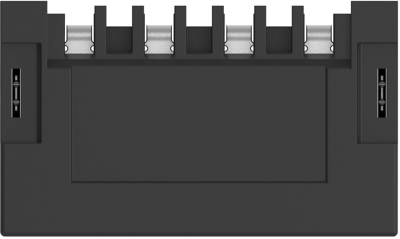

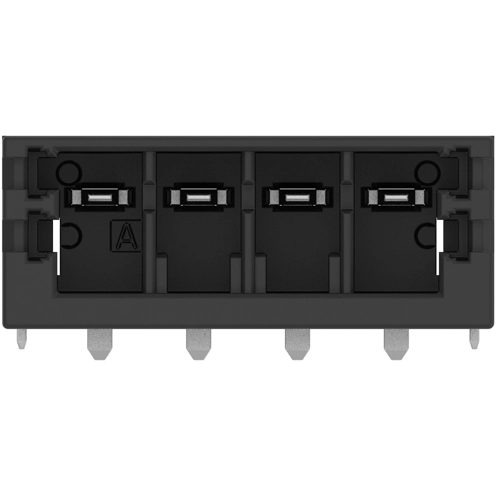

PCB Terminal, 2336490-4, TE Connectivity
The 2336490-4 is a compact 5-mm pitch wire-to-board PCB connector with field-installable, time-saving push-in clamp termination. The center-locking lever has clear tactile and audible mating feedback to ensure safe mating.
Applications
- Servo Drive/Inverter Drive Power inlet/outlet
- Industrial Microcontrols
- Robot and Cobot control units
- PLCs Power inlet/outlet
- Controls in building automation and household appliances
Technical specifications
| Connection | pin | |
| Width | 14.8 mm | |
| Colour | black | |
| Height | 9.8 mm | |
| Rated voltage | 300 V | |
| Rated current | 16 A | |
| Pin number | 4 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
