2363965-2 | TE Connectivity
PCB terminal, 2 pole, pitch 5 mm, AWG 30-12, 17.5 A, cage clamp, black, 2363965-2
Order No.: 71P6811
EAN: 4099891630454
MPN:
2363965-2
Unit Price (€ / pc.)
5.4859 € *
Available: 0 pcs.
Available in 5 Days: 3,198 pcs.
Leadtime: 11 Weeks **
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
20 pcs.
5.4859 €
85 pcs.
5.1646 €
*incl. VAT plus shipping costs
**Subject to prior sale

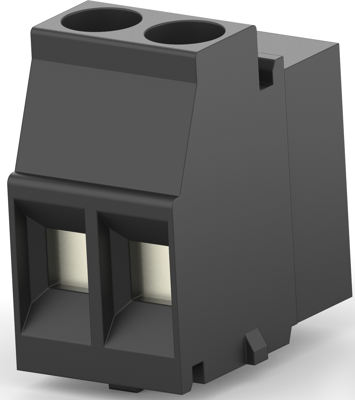

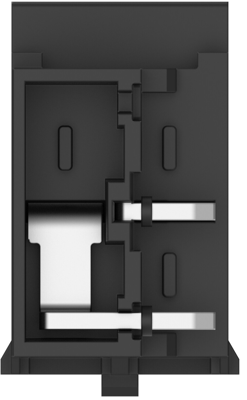

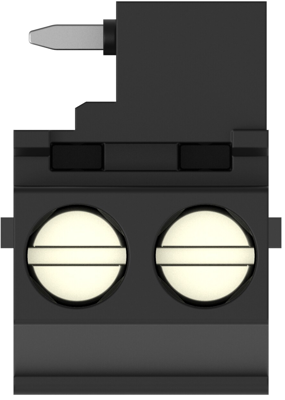

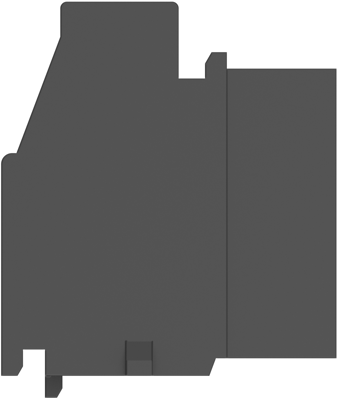

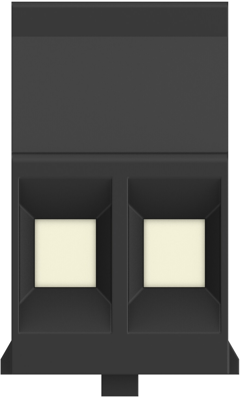

PCB terminal, 2363965-2, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 2 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-12 | |
| Width | 15.3 mm | |
| Colour | black | |
| Height | 17.05 mm | |
| Contact distance | RM 5/2.50 | |
| Cable cross-section | 0.05-3.31 mm² | |
| Rated voltage | 300 V | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
