282809-6 | TE Connectivity

PCB terminal, 6 pole, pitch 10.16 mm, AWG 30-12, 15 A, cage clamp, green, 282809-6

Order No.: 71P7002
EAN: 4099891630492
MPN:
282809-6
TE Connectivity

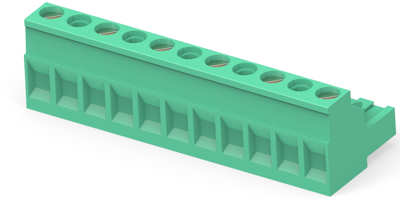

282809-6 TE Connectivity PCB Terminal Blocks Image 1

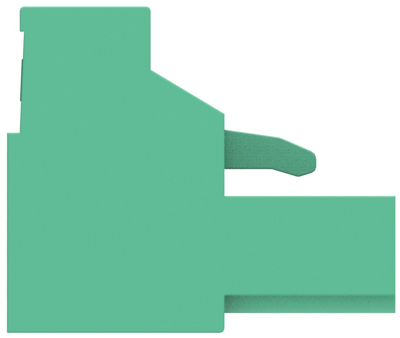

282809-6 TE Connectivity PCB Terminal Blocks Image 2

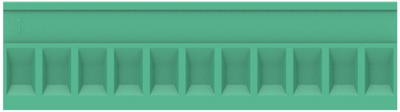

282809-6 TE Connectivity PCB Terminal Blocks Image 3

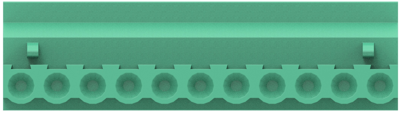

282809-6 TE Connectivity PCB Terminal Blocks Image 4

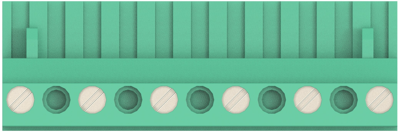

282809-6 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
4.5220 € *
Available: 0 pcs.
Available in 5 Days: 369 pcs.
Leadtime: 21 Weeks **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
20 pcs.
4.5220 €
95 pcs.
4.2602 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 282809-6, TE Connectivity

PCB Terminal block, Plug, Wire-to-Board, 6 Position, 10.16 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection cage clamp
AWG cross-section AWG 30-12
Width 18.4 mm
Colour green
Height 15.5 mm
Cable cross-section 0.05-3 mm²
Rated voltage 600 V
Rated current 15 A
Pin number 6 pole
Grid 10.16 mm
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
