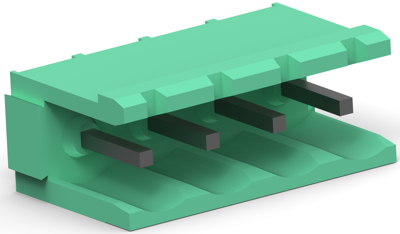

282824-4 | TE Connectivity
PCB terminal, 4 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 282824-4
Order No.: 38P7464
EAN: 4099891039325
MPN:
282824-4
Unit Price (€ / pc.)
1.4280 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.43 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4280 €
10 pcs.
1.2971 €
50 pcs.
1.1662 €
100 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal block, 282824-4, TE Connectivity
Header Type: Shrouded, Terminal Block Connector Type: Header, Connector System: Wire-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Threaded Flange: Without, Number of Positions: 4, Number of Rows: 1, Current Rating (Max): 15 A, Voltage Rating: 300 VAC, Interlock: With, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 15 A, Screw Flange: Without, Connector Mounting Type: Board Mount, Housing Material: Polyamide 6.6 GF, Centerline (Pitch): 5.08 mm, PCB Tail Length: 3.5 mm, Wire Size: 30 – 12 AWG, Wire Size: 0.05 – 3 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Power & Signal.
Technical specifications
| Connection | pin | |
| AWG cross-section | AWG 30-12 | |
| Colour | green | |
| Cable cross-section | 0.05-3.0 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 4 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
