282837-9 | TE Connectivity

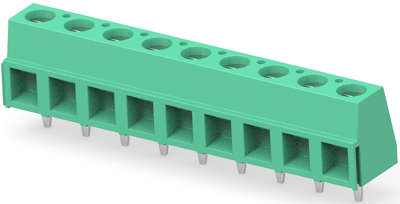

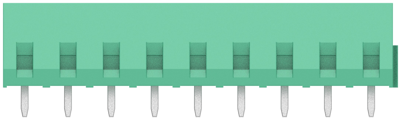

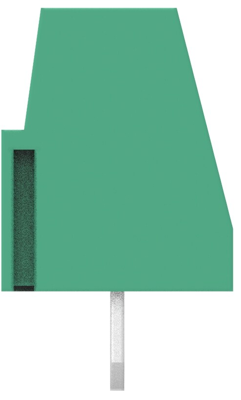

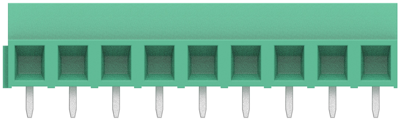

PCB terminal, 9 pole, pitch 5.08 mm, AWG 30-16, 13.5 A, cage clamp, green, 282837-9
Order No.: 71P7031
EAN: 4099891630713
MPN:
282837-9
Unit Price (€ / pc.)
3.5224 € *
Available: 0 pcs.
Available in 5 Days: 430 pcs.
Leadtime: 11 Weeks **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.2368 €
50 pcs.
2.9155 €
100 pcs.
2.6180 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 282837-9, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 9 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 16 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | Käfigklemme | |
| AWG cross-section | AWG 30-16 | |
| Width | 8.2 mm | |
| Colour | grün | |
| Height | 10 mm | |
| Cable cross-section | 0,05-1,3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 13.5 A | |
| Pin number | 9-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
