284049-2 | TE Connectivity

PCB terminal, 2 pole, pitch 7.62 mm, AWG 30-12, 15 A, screw connection, green, 284049-2

Order No.: 38P7470
EAN: 4099891039387
MPN:
284049-2
284049-2 TE Connectivity PCB Terminal Blocks

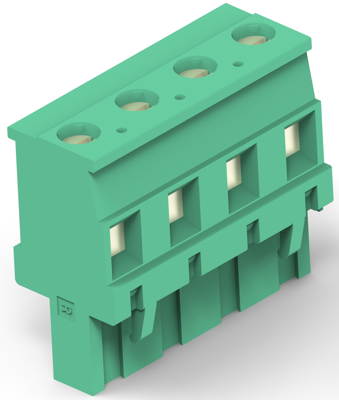

Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
642.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.6426 €

PCB terminal block, 284049-2, TE Connectivity

Wire Protection: With, Terminal Block Connector Type: Plug, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Stacking Configuration: Side Stackable, Number of Positions: 2, Number of Rows: 1, Wire Entry Angle: Side, Current Rating (Max): 15 A, Voltage Rating: 300 VAC, Interlock: Without, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 15 A, Screw Flange: Without, Housing Material: PA 66, Centerline (Pitch): 7.62 mm, Wire Size: 30 – 12 AWG, Wire Size: 0.05 – 3 mm², Operating Temperature Range: -40 – 105 °C, Circuit Application: Power & Signal

Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 30-12
Farbe grün
Leiterquerschnitt 0,05-3,0 mm²
Nennspannung 300 V
Nennstrom 15 A
Polzahl 2-polig
Rastermaß 7.62 mm
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
