284516-4 | TE Connectivity

PCB terminal, 4 pole, pitch 3.5 mm, AWG 30-14, 11 A, pin, green, 284516-4

Order No.: 71P7164
EAN: 4099891631376
MPN:
284516-4
TE Connectivity

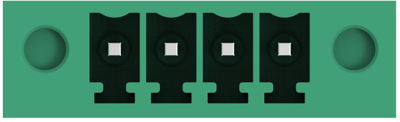

284516-4 TE Connectivity PCB Terminal Blocks Image 1

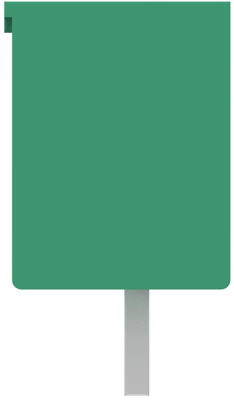

284516-4 TE Connectivity PCB Terminal Blocks Image 2

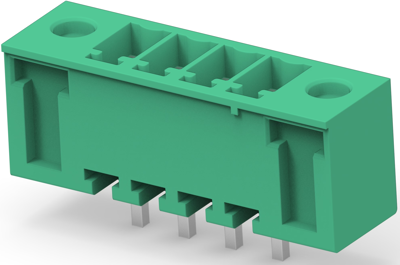

284516-4 TE Connectivity PCB Terminal Blocks Image 3

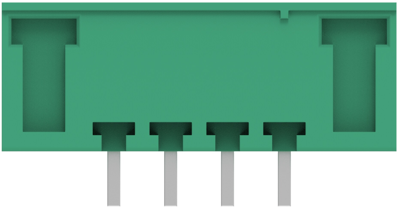

284516-4 TE Connectivity PCB Terminal Blocks Image 4

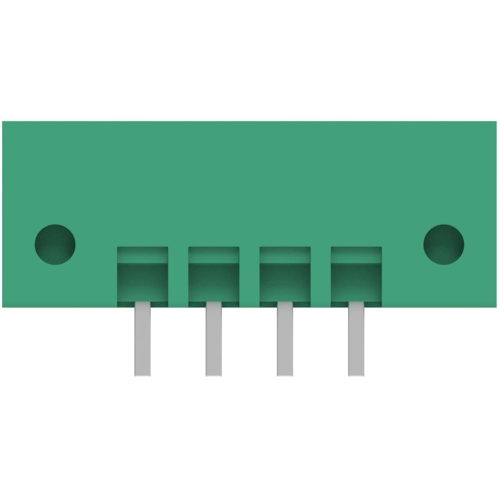

284516-4 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Available in 5 Days: 1,095 pcs.
Leadtime: 13 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
65 pcs.
1.3804 €
350 pcs.
1.2852 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 284516-4, TE Connectivity

PCB Terminal block, Header, Wire-to-Board, 4 Position, 3.5 mm Centerline, 1 Row, 30 - 14 AWG Wire size, 0.05 - 2 mm² Wire size, 11 A.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Connection pin
AWG cross-section AWG 30-14
Width 7.25 mm
Colour green
Height 9.2 mm
Cable cross-section 0.05-2 mm²
Rated voltage 200 V
Rated current 11 A
Pin number 4 pole
Grid 3.5 mm
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
