6-1437667-9 | TE Connectivity

PCB terminal, 8 pole, AWG 22 to 12, 20 A, screw connection, black, 6-1437667-9

Order No.: 72P0282
EAN: 4099891631932
MPN:
6-1437667-9
TE Connectivity

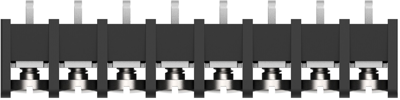

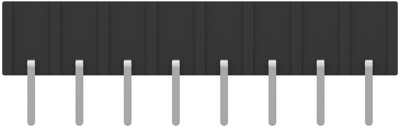

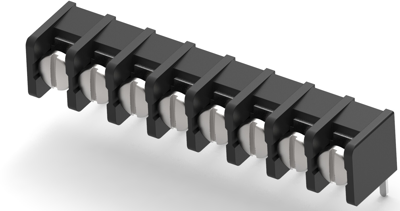

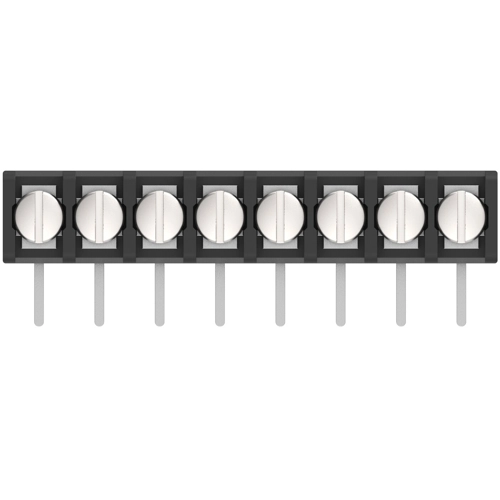

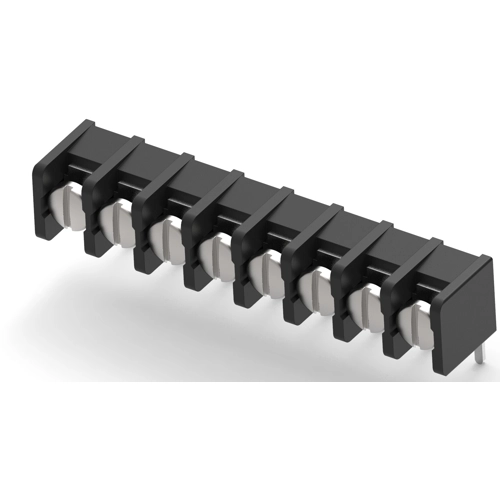

6-1437667-9 TE Connectivity PCB Terminal Blocks Image 1
6-1437667-9 TE Connectivity PCB Terminal Blocks Image 2

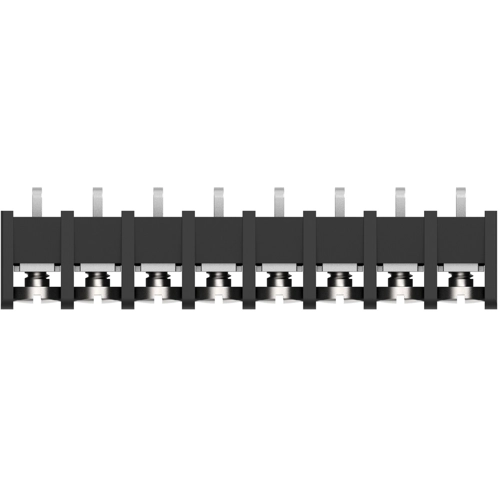

6-1437667-9 TE Connectivity PCB Terminal Blocks Image 3
6-1437667-9 TE Connectivity PCB Terminal Blocks Image 4
6-1437667-9 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Print
Key Specification:
Pin number 8 pole
Cable cross-section 0.3-3.0 mm²
AWG cross-section AWG 22 to 12

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
7.1638 € *
Available: 0 pcs.
Available in 5 Days: 1,680 pcs.
Leadtime: 9 Weeks **
Add to Cart
Total Price:
7.16 € *
Price list
Quantity
Price per unit*
18 pcs.
7.1638 €
86 pcs.
6.8187 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

PCB terminal, 6-1437667-9, TE Connectivity

Barrier strip, Dual barrier, Right angle, Wire-to-Board, 8 Position, 8.26 mm Centerline, 1 Row, 300 V / 150 V, 22 - 12 AWG Wire size.
Technical specifications
Connection screw connection
AWG cross-section AWG 22 to 12
Width 12.7 mm
Colour black
Height 13.46 mm
Cable cross-section 0.3-3.0 mm²
Rated current 20 A
Pin number 8 pole
Show similar products 0
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
