796636-2 | TE Connectivity
PCB terminal, 2 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 796636-2
Order No.: 72P1462
EAN: 4099891632106
MPN:
796636-2
Unit Price (€ / pc.)
0.3011 € *
Available: 0 pcs.
Available in 5 Days: 9,300 pcs.
Leadtime: 11 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3011 €
1500 pcs.
0.2856 €
*incl. VAT plus shipping costs
**Subject to prior sale

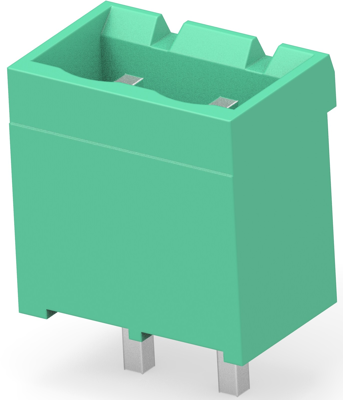

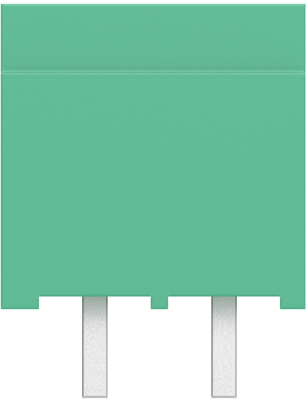

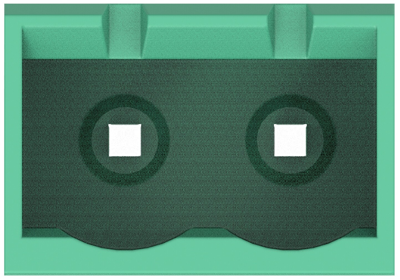

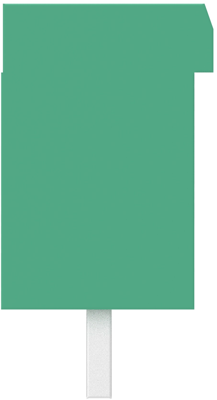

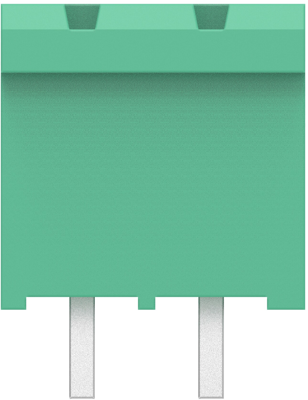

PCB terminal, 796636-2, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 2 Position, 5.08 mm Centerline, 1 Row, 30 - 12 AWG Wire size, 0.05 - 3 mm² Wire size, 15 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | pin | |
| AWG cross-section | AWG 30-12 | |
| Width | 8.35 mm | |
| Colour | green | |
| Height | 12 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 2 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
