796638-7 | TE Connectivity

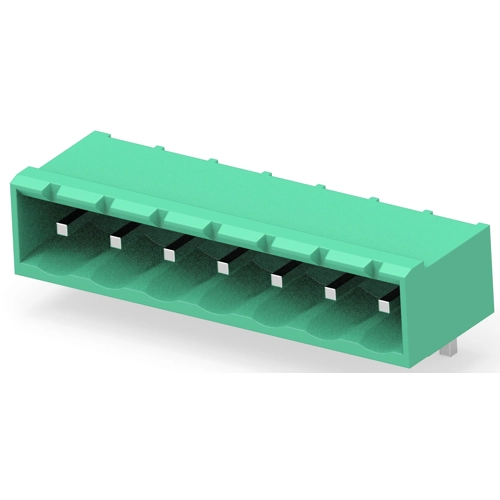

PCB terminal, 7 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 796638-7
Order No.: 72P1469
EAN: 4099891632175
MPN:
796638-7
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Available in 5 Days: 1,080 pcs.
Leadtime: 11 Weeks **
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
40 pcs.
2.2372 €
250 pcs.
1.8921 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 796638-7, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 7 Position, 5.08 mm Centerline, 1 Row, 30 - 12 AWG Wire size, 0.05 - 3 mm² Wire size, 15 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | pin | |
| AWG cross-section | AWG 30-12 | |
| Width | 12 mm | |
| Colour | green | |
| Height | 8.35 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 7 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
