796640-5 | TE Connectivity
PCB terminal, 5 pole, pitch 5 mm, AWG 30-12, 15 A, cage clamp, green, 796640-5
Order No.: 72P1472
EAN: 4099891632199
MPN:
796640-5
Unit Price (€ / pc.)
3.3796 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
3.38 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3796 €
10 pcs.
3.0940 €
50 pcs.
2.7846 €
100 pcs.
2.5109 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 796640-5, TE Connectivity

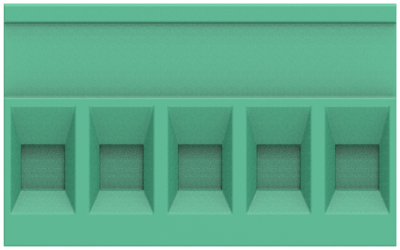

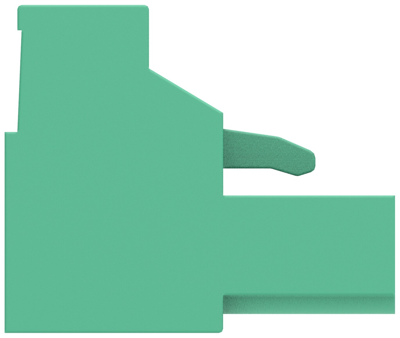

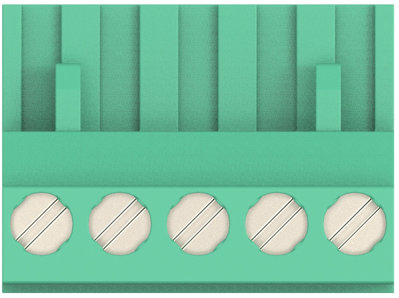

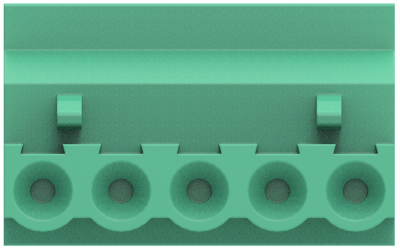

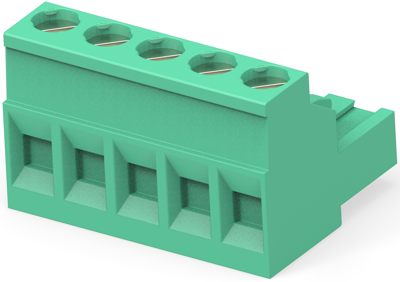

PCB Terminal block, Plug, Wire-to-Board, 5 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | Käfigklemme | |
| AWG cross-section | AWG 30-12 | |
| Width | 15.5 mm | |
| Colour | grün | |
| Height | 18.4 mm | |
| Cable cross-section | 0,05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 5-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
