796859-9 | TE Connectivity

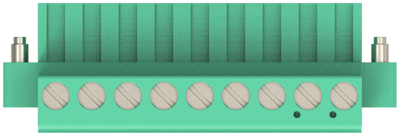

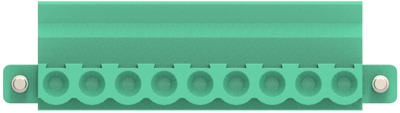

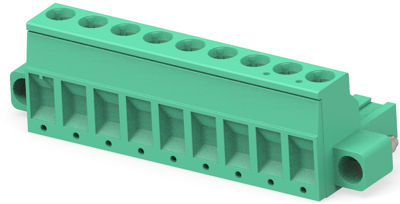

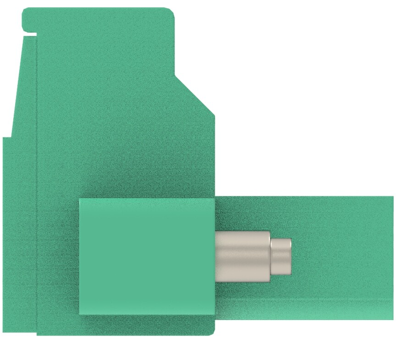

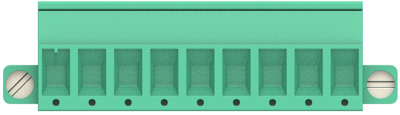

PCB terminal, 9 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 796859-9
Order No.: 72P1511
EAN: 4099891632519
MPN:
796859-9
Unit Price (€ / pc.)
10.6505 € *
Available: 0 pcs.
Available in 5 Days: 1,679 pcs.
Leadtime: 11 Weeks **
Total Price:
10.65 € *
Price list
Quantity
Price per unit*
10 pcs.
10.6505 €
50 pcs.
10.4482 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 796859-9, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 9 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-12 | |
| Width | 18.4 mm | |
| Colour | green | |
| Height | 15.5 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 9 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
