796949-9 | TE Connectivity

PCB terminal, 9 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 796949-9

Order No.: 72P1527
EAN: 4099891632656
MPN:
796949-9
TE Connectivity

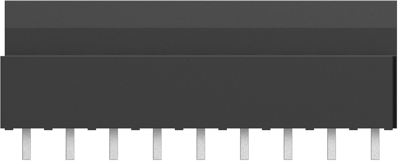

796949-9 TE Connectivity PCB Terminal Blocks Image 1

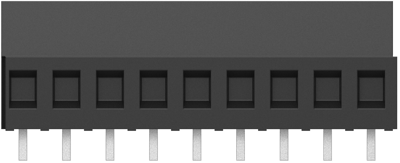

796949-9 TE Connectivity PCB Terminal Blocks Image 2

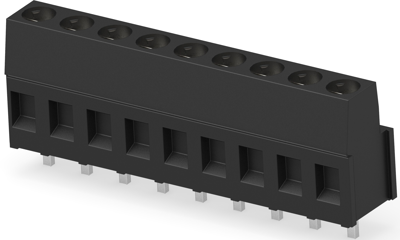

796949-9 TE Connectivity PCB Terminal Blocks Image 3

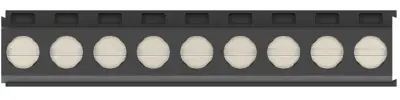

796949-9 TE Connectivity PCB Terminal Blocks Image 4
796949-9 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
8.1277 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.13 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1277 €
10 pcs.
7.4851 €
50 pcs.
6.7354 €
100 pcs.
6.0571 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 796949-9, TE Connectivity

PCB Terminal block, Header, Wire-to-Board, 9 Position, 5.08 mm Centerline, 1 Row, Side wire entry angle, 30 - 12 AWG Wire size.

Applications

  • Industrial control
  • HVAC equipment and control
  • Communications equipment
  • Test and measurement
  • Fire and security
Technical specifications
Anschluss Käfigklemme
AWG-Leiterquerschnitt AWG 30-12
Breite 9 mm
Farbe schwarz
Höhe 15.2 mm
Leiterquerschnitt 0,05-3 mm²
Nennspannung 300 V
Nennstrom 17.5 A
Polzahl 9-polig
Rastermaß 5.08 mm
Logistics
Ursprungsland IT
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
