9-1546119-3 | TE Connectivity

PCB terminal, 2 pole, AWG 22 to 12, 20 A, screw connection, black, 9-1546119-3

Order No.: 72P2181
EAN: 4099891632809
MPN:
9-1546119-3
Series: AMP-LATCH

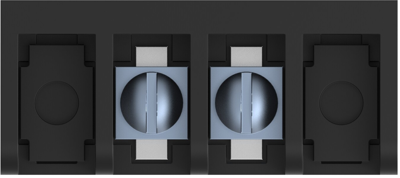

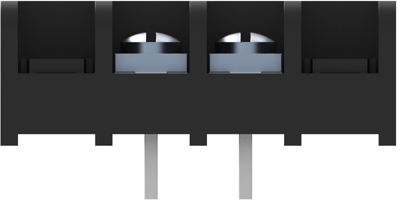

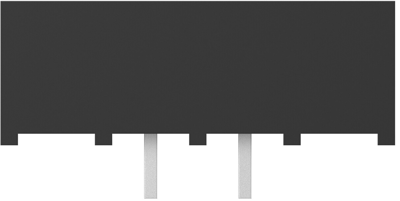

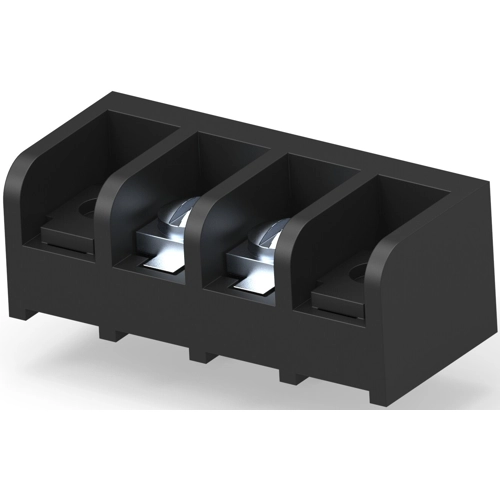

9-1546119-3 TE Connectivity PCB Terminal Blocks Image 1
9-1546119-3 TE Connectivity PCB Terminal Blocks Image 2

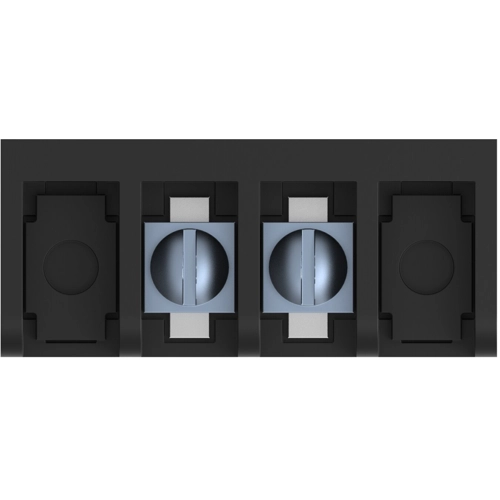

9-1546119-3 TE Connectivity PCB Terminal Blocks Image 3
9-1546119-3 TE Connectivity PCB Terminal Blocks Image 4
9-1546119-3 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Available in 5 Days: 1,190 pcs.
Leadtime: 28 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.2019 €
50 pcs.
1.0829 €
100 pcs.
0.9758 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 9-1546119-3, TE Connectivity

Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 2 Position, 8.26 mm Centerline, 1 Row, 150 V.

Applications

  • Machine control
  • Power supplies
  • Test & measurement
  • Automation equipment
  • Security/alarm devices
  • Garage door openers
Technical specifications
Connection Schraubanschluss
AWG cross-section AWG 22 bis 12
Width 15.24 mm
Colour schwarz
Height 12.7 mm
Cable cross-section 0,3-3,0 mm²
Rated current 20 A
Pin number 2-polig
Logistics
Country of origin TW
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
