1742347-1 | TE Connectivity

Plug sleeve, 1742347-1

Order No.: 71P3267
EAN: 4099891712709
MPN:
1742347-1
Series: MAG-MATE

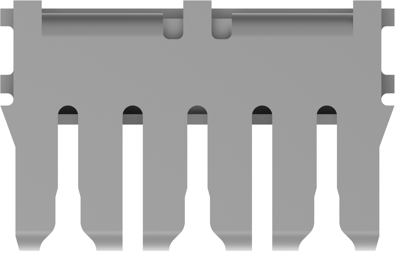

1742347-1 TE Connectivity Receptacles Image 1

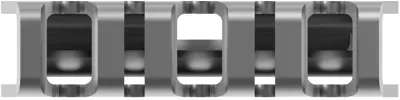

1742347-1 TE Connectivity Receptacles Image 2

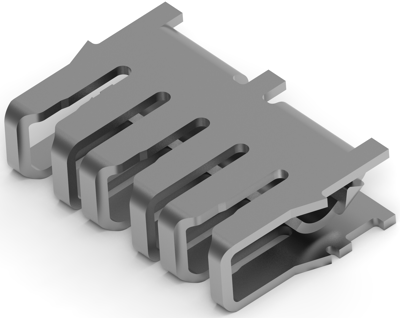

1742347-1 TE Connectivity Receptacles Image 3

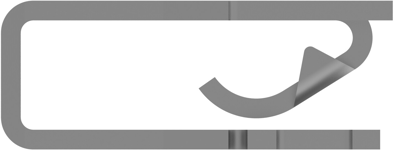

1742347-1 TE Connectivity Receptacles Image 4

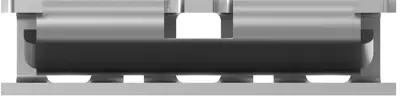

1742347-1 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2416 € *
Available: 0 pcs.
Available in 5 Days: 24,000 pcs.
Leadtime: 19 Weeks **
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2416 €
100 pcs.
0.2130 €
250 pcs.
0.1868 €
500 pcs.
0.1535 €
*incl. VAT plus shipping costs
**Subject to prior sale

Magnet wire terminal, 1742347-1, TE Connectivity

The 1742347-1 is a magnet wire high speed terminal, fully automated and integrated system that provides uniform terminations reliably at the lowest possible applied cost. Clean metal-to-metal interface produces stable, gas-tight electrical terminations free of oxides and other contaminants

This product inserter cuts the terminals from the strip and places the terminals over the magnet wire into the plastic cavities. During this operation, small stripping shoulders in the IDC slot remove the film insulation from the magnet wire.

Features

  • Eliminates need for pre-stripping conductors
  • Excess magnet wire is automatically trimmed during the termination process
  • Simultaneously terminates two magnet wires of the same size in one terminal

Applications

  • Motor windings and connections
  • Coil connections
  • Transformer windings and connections
  • Lighting ballasts
  • Power supplies
Technical specifications
Anschluss Schneidklemmanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 19 bis 17
Isoliert No
Länge 7.87 mm
Material Messing, verzinnt
Logistics
Ursprungsland US
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
