1969110-2 | TE Connectivity

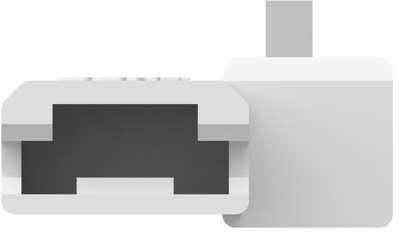

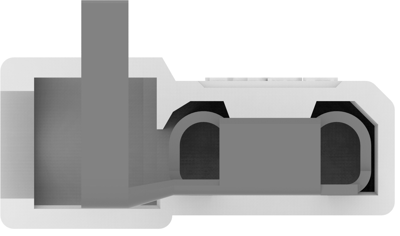

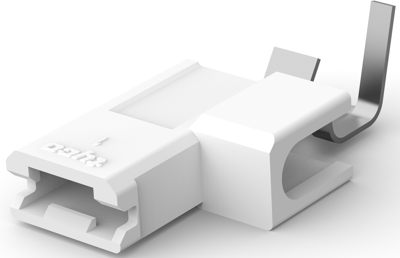

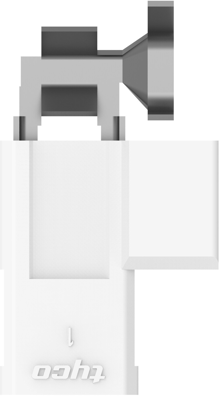

Flat plug sleeve, 0.51 to 2.08 mm², AWG 20 to 14, brass, tin-plated, 1969110-2
Order No.: 35P4591
EAN: 4099889628005
MPN:
1969110-2
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Leadtime: On Request **
Quick disconnect, 1969110-2, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: .41 mm, Wire Size: 18 – 14 AWG,20 AWG, Wire Size: .51 mm²,.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 150 °C, Packaging Quantity: 7200, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 14 | |
| Cable cross-section | 0.51 to 2.08 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
