2-1703930-4 | TE Connectivity

Uninsulated flat plug sleeve, 0.5 x 0.4 mm, 0.22 to 0.35 mm², AWG 24 to 22, copper alloy, tin plated, 2-1703930-4

Order No.: 71P5109
EAN: 4099891712891
MPN:
2-1703930-4

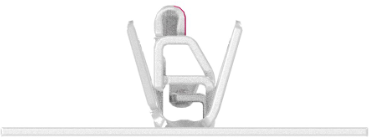

2-1703930-4 TE Connectivity Receptacles Image 1

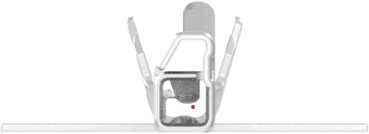

2-1703930-4 TE Connectivity Receptacles Image 2

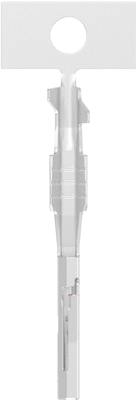

2-1703930-4 TE Connectivity Receptacles Image 3

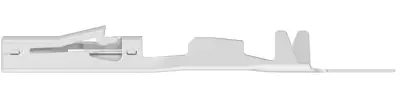

2-1703930-4 TE Connectivity Receptacles Image 4

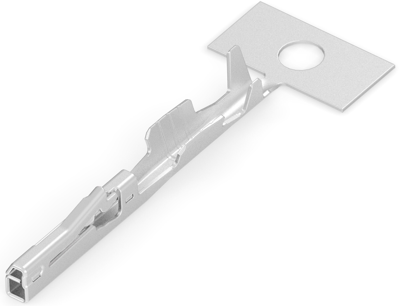

2-1703930-4 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0690 € *
Available: 0 pcs.
Available in 5 Days: 51,000 pcs.
Leadtime: 16 Weeks **
Total Price:
1,173.34 € *
Price list
Quantity
Price per unit*
17000 pcs.
0.0690 €
34000 pcs.
0.0655 €
*incl. VAT plus shipping costs
**Subject to prior sale

Uninsulated flat plug sleeve, 2-1703930-4, TE Connectivity

Automotive terminal, Receptacle, Mating tab width 0.5 mm, Tab thickness 0.4 mm, 24 - 22 AWG Wire size, 0.22 - 0.35 mm² Wire size.

Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 24 bis 22
Suitable for 0,5 x 0,4 mm
Isolated No
Length 13.9 mm
Cable cross-section 0,22 bis 0,35 mm²
Material Kupferlegierung, verzinnt
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
