3-927833-2 | TE Connectivity

Uninsulated flat plug sleeve, 5.8 x 0.8 mm, 1 to 2.5 mm², AWG 17 to 13, copper alloy, tin plated, 3-927833-2

Order No.: 71P8402
EAN: 4099891713348
MPN:
3-927833-2
Series: Power Timer

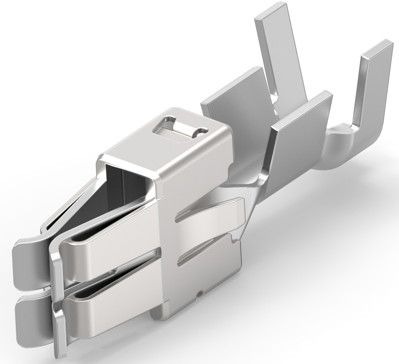

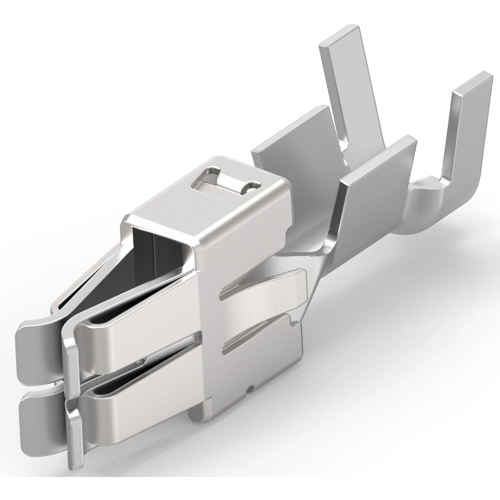

3-927833-2 TE Connectivity Receptacles Image 1

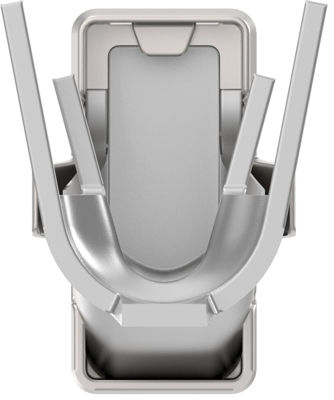

3-927833-2 TE Connectivity Receptacles Image 2

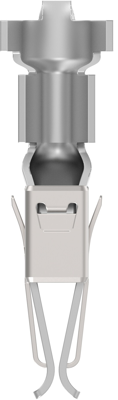

3-927833-2 TE Connectivity Receptacles Image 3

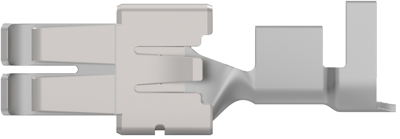

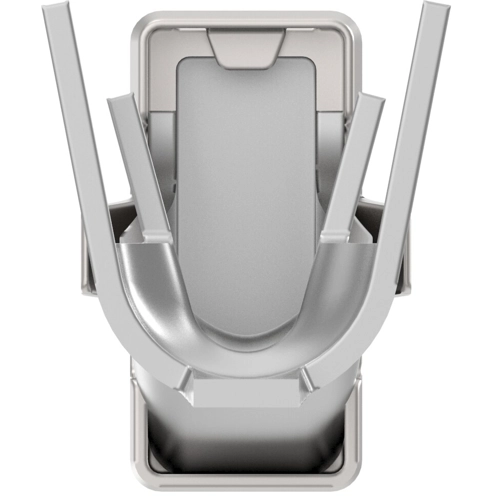

3-927833-2 TE Connectivity Receptacles Image 4

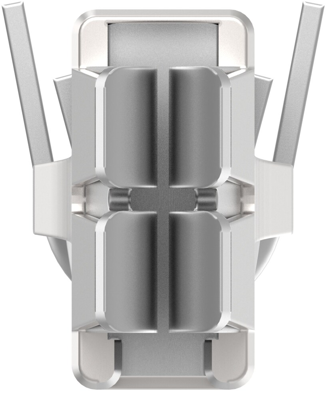

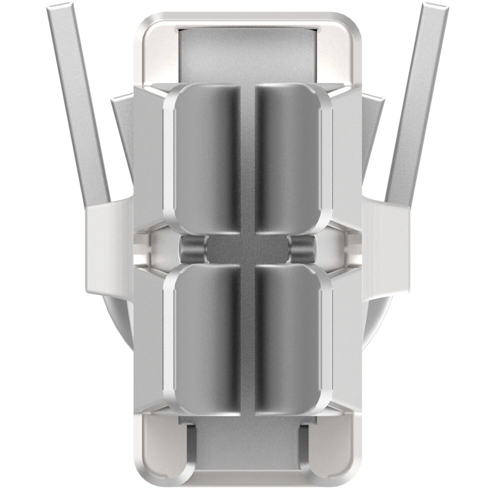

3-927833-2 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1987 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 19 Weeks **
Total Price:
397.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.1987 €

Timer contact, 3-927833-2, TE Connectivity

Automotive terminal, Receptacle, Mating tab width 5.8 mm, Tab thickness 0.8 mm, 17-13 AWG Wire size.

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 17 bis 13
Geeignet für 5,8 x 0,8 mm
Isoliert No
Leiterquerschnitt 1 bis 2,5 mm²
Material Kupferlegierung, verzinnt
Logistics
Ursprungsland CN
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
