776300-1 | TE Connectivity
Plug sleeve, 776300-1
Unit Price (€ / pc.)
1.1662 € *
Available: 0 pcs.
Available in 5 Days: 570 pcs.
Leadtime: 18 Weeks **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
10 pcs.
1.0472 €
50 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale

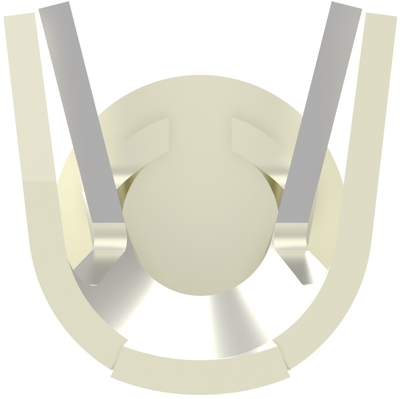

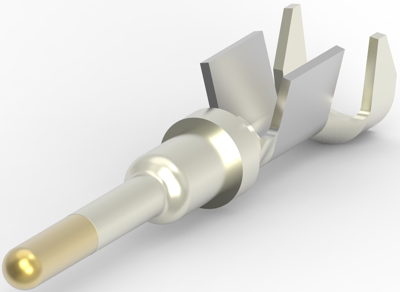

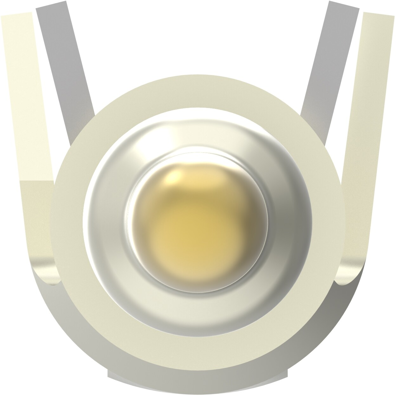

Plug sleeve, 776300-1, TE Connectivity
Automotive terminal, Pin, Pin diameter 1.59 mm , 18-14 AWG Wire size, 0.8-2 mm² Wire size, Gold (Au) Interface Plating.
Features
- In-line mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
Technical specifications
| Connection | Crimpanschluss | |
| Version | Rundsteckhülse | |
| AWG cross-section | AWG 18 bis 14 | |
| Isolated | No | |
| Length | 23.21 mm | |
| Cable cross-section | 0,8 bis 2 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
