881719-1 | TE Connectivity

Uninsulated flat plug sleeve, 2.8 x 0.81 mm, 0.51 to 1.03 mm², AWG 20 to 17, brass, 881719-1

Order No.: 34P7706
EAN: 4099889619669
MPN:
881719-1
Series: FASTIN-FASTON
TE Connectivity

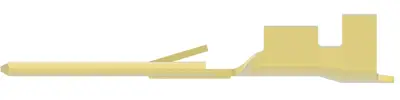

881719-1 TE Connectivity Receptacles Image 1

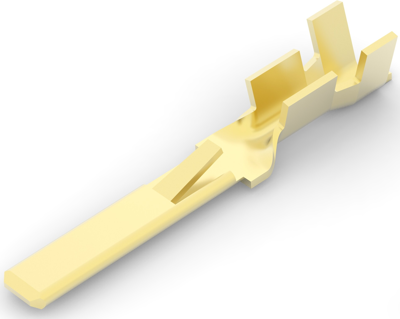

881719-1 TE Connectivity Receptacles Image 2

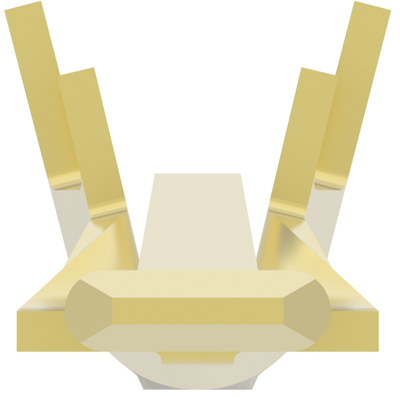

881719-1 TE Connectivity Receptacles Image 3

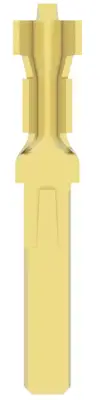

881719-1 TE Connectivity Receptacles Image 4

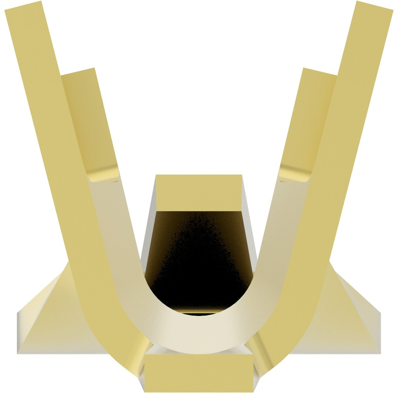

881719-1 TE Connectivity Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0702 € *
Available: 0 pcs.
Available in 5 Days: 45,000 pcs.
Leadtime: 15 Weeks **
Total Price:
0.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
0.0702 €

Quick disconnect, 881719-1, TE Connectivity

Insulated: No, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: .41 mm, Wire Size: 20 – 17 AWG, Wire Size: .51 – 1.03 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: .81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 90 °C, Packaging Quantity: 15000, Quick Disconnect Packaging Method: Reel

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 20 to 17
Suitable for 2.8 x 0.81 mm
Isolated No
Length 22 mm
Cable cross-section 0.51 to 1.03 mm²
Material brass
Logistics
Country of origin IN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
