1-2273096-1 | TE Connectivity

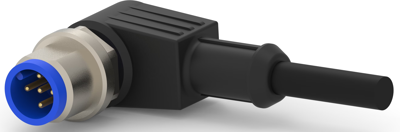

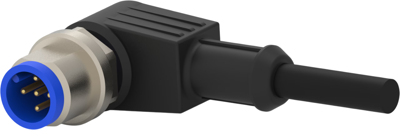

Sensor actuator cable, M12-cable plug, angled to open end, 3 pole, 1.5 m, PUR, gray, 4 A, 1-2273096-1
Order No.: 71P1457
EAN: 4099891671600
MPN:
1-2273096-1
Unit Price (€ / pc.)
26.8702 € *
Available: 0 pcs.
Available in 5 Days: 161 pcs.
Leadtime: 36 Weeks **
Total Price:
214.96 € *
Price list
Quantity
Price per unit*
8 pcs.
26.8702 €
18 pcs.
26.3823 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, 1-2273096-1, TE Connectivity
M12 Plug x 1.0 angled pigtail A, Sensor/Actuator, Number of positions: 3, Right angle, Single ended, Plastic.
Technical specifications
| Connection (1) | M12-Kabelstecker, abgewinkelt | |
| Connection (2) | offenes Ende | |
| Pin number | 3-polig | |
| Cable length | 1.5 m | |
| Colour | grau | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
