1-2273122-4 | TE Connectivity

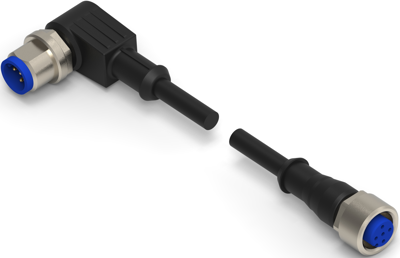

Name: Sensor actuator cable, M12-cable plug, angled to M12-cable socket, straight, 5 pole, 1.5 m, PVC, black, 4 A, 1-2273122-4
Brand: TE Connectivity
SKU: 38P9305
Price: 20.35 EUR
Availability: OutOfStock

Sensor actuator cable, M12-cable plug, angled to M12-cable socket, straight, 5 pole, 1.5 m, PVC, black, 4 A, 1-2273122-4

Order No.: 38P9305

EAN: 4099891102210

MPN:

1-2273122-4

Image may differ

Key Specification:

Connection (1) M12-cable plug, angled

Connection (2) M12-cable socket, straight

Pin number 5 pole

Cable length 1.5 m

Colour black

Download Datasheet Technical specifications

Unit Price (€ / pc.)

20.349 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

20.35 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Sensor/actuator cable, 1-2273122-4, TE Connectivity

M8/M12 Cable Assemblies, Sensor/Actuator, 5-position, A keying code, M12 Plug, M12 Socket, M12, Right angle connector orientation (End A)

Technical specifications

	Connection (1)	M12-cable plug, angled
	Connection (2)	M12-cable socket, straight
	Colour	black
	Cable length	1.5 m
	LED display	No
	Material	PVC
	max. Voltage	125 V
	Rated current	4 A
	Pin number	5 pole
	Degree of protection (IP)	IP65/IP67
