2273048-3 | TE Connectivity
Sensor actuator cable, M12-cable plug, straight to open end, 8 pole, 5 m, PUR, gray, 2 A, 2273048-3
Order No.: 71P6276
EAN: 4099891671914
MPN:
2273048-3
Unit Price (€ / pc.)
65.9022 € *
Available: 0 pcs.
Available in 5 Days: 23 pcs.
Leadtime: 11 Weeks **
Total Price:
65.90 € *
Price list
Quantity
Price per unit*
2 pcs.
65.9022 €
6 pcs.
62.0704 €
*incl. VAT plus shipping costs
**Subject to prior sale

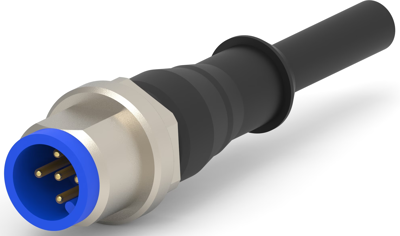

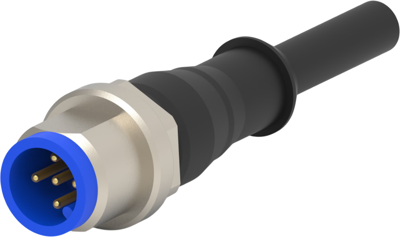

Sensor actuator cable, 2273048-3, TE Connectivity
The 2273048-3 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
