2273096-3 | TE Connectivity

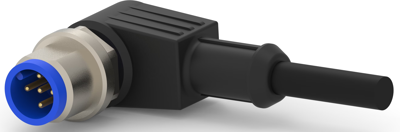

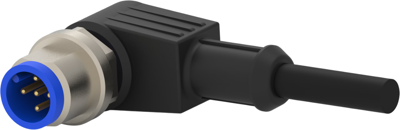

Sensor actuator cable, M12-cable plug, angled to open end, 3 pole, 5 m, PVC, gray, 4 A, 2273096-3
Order No.: 71P6284
EAN: 4099891671983
MPN:
2273096-3
Unit Price (€ / pc.)
34.4029 € *
Available: 0 pcs.
Available in 5 Days: 50 pcs.
Leadtime: 36 Weeks **
Total Price:
34.40 € *
Price list
Quantity
Price per unit*
3 pcs.
34.4029 €
12 pcs.
32.3918 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 2273096-3, TE Connectivity
The 2273096-3 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-cable plug, angled | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
