2273101-3 | TE Connectivity

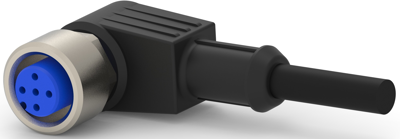

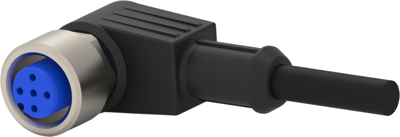

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 5 m, PUR, gray, 4 A, 2273101-3
Order No.: 71P6290
EAN: 4099891672041
MPN:
2273101-3
Unit Price (€ / pc.)
44.4227 € *
Available: 0 pcs.
Available in 5 Days: 7 pcs.
Leadtime: 17 Weeks **
Sensor actuator cable, 2273101-3, TE Connectivity
The 2273101-3 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-Kabeldose, abgewinkelt | |
| Connection (2) | offenes Ende | |
| Pin number | 5-polig | |
| Cable length | 5 m | |
| Colour | grau | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
