TAB62135501-002 | TE Connectivity

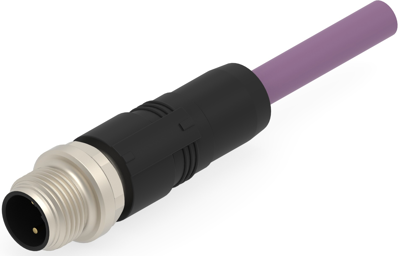

Sensor actuator cable, M12-cable plug, straight to open end, 2 pole, 1 m, PUR, purple, 4 A, TAB62135501-002
Order No.: 72P4052
EAN: 4099891673352
MPN:
TAB62135501-002
Unit Price (€ / pc.)
24.0975 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: 28 Weeks **
Total Price:
24.10 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0975 €
10 pcs.
22.1697 €
25 pcs.
19.9563 €
50 pcs.
17.9571 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, TAB62135501-002, TE Connectivity
The TAB62135501-002 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 2-polig | |
| Cable length | 1 m | |
| Colour | violett | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 250 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
