TAB62646501-040 | TE Connectivity

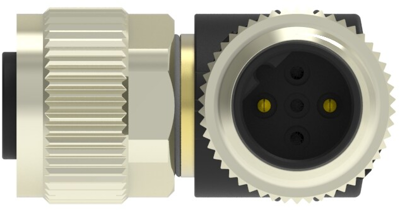

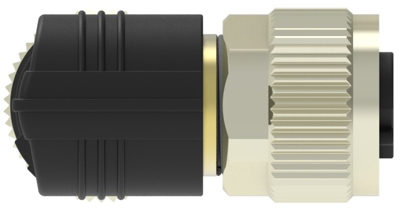

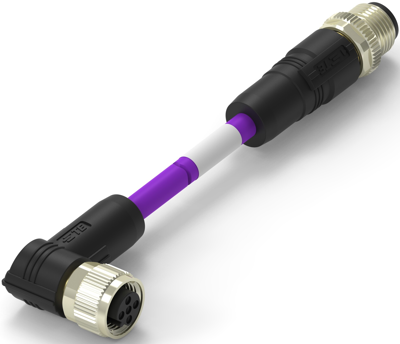

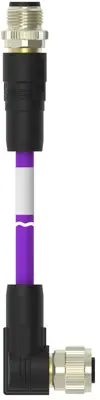

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 2 pole, 4 m, PUR, purple, 4 A, TAB62646501-040
Order No.: 72P4084
EAN: 4099891673673
MPN:
TAB62646501-040
Unit Price (€ / pc.)
28.2268 € *
Available: 0 pcs.
Available in 5 Days: 36 pcs.
Leadtime: 27 Weeks **
Total Price:
28.23 € *
Price list
Quantity
Price per unit*
3 pcs.
28.2268 €
15 pcs.
26.5846 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, TAB62646501-040, TE Connectivity
The TAB62646501-040 provides a solution for the increasing needs of sensor connection that safely and reliably secure the communication in industrial environments. This product also finds applications outside of it's traditional industries where a compact reliable connection system with environmental protection is required.
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable socket, angled | |
| Colour | purple | |
| Cable length | 4 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
