1SNA115271R2200 | TE Connectivity

Screw terminal block, screw connection, 4.0 mm², 2 pole, 32 A, 8 kV, gray, 1SNA115271R2200

Order No.: 71P4132
MPN:
1SNA115271R2200
Series: SNA
TE Connectivity

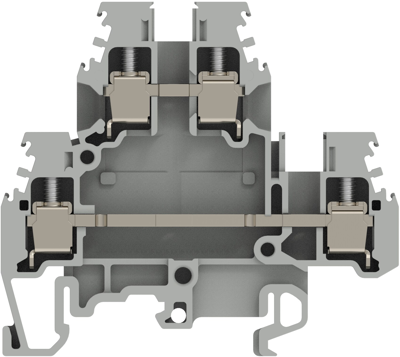

1SNA115271R2200 TE Connectivity Series Terminals Image 1

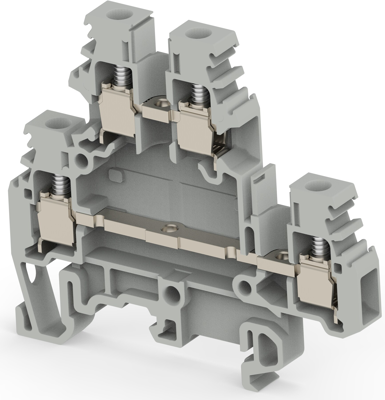

1SNA115271R2200 TE Connectivity Series Terminals Image 2

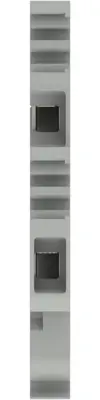

1SNA115271R2200 TE Connectivity Series Terminals Image 3

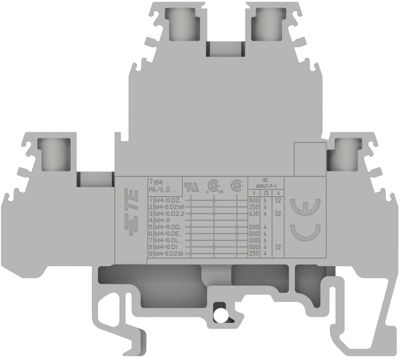

1SNA115271R2200 TE Connectivity Series Terminals Image 4

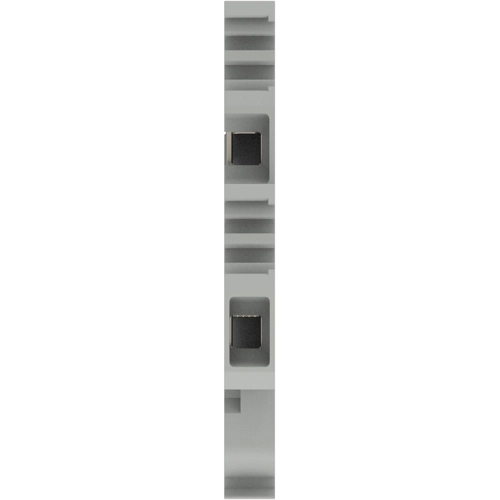

1SNA115271R2200 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
6.1880 € *
Available: 0 pcs.
Available in 5 Days: 179 pcs.
Leadtime: 4 Weeks **
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
15 pcs.
6.1880 €
50 pcs.
4.4863 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 1SNA115271R2200, TE Connectivity

The 1SNA115271R2200 is a screw clamp terminal block save space with double deck terminal and 2 independent circuits in just 6 mm spacing.

Features

  • Snap onto symmetrical and asymmetrical rails
Technical specifications
Anschluss Schraubanschluss
Ausführung Schraubklemmleiste
AWG-Leiterquerschnitt AWG 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 6 mm
Farbe grau
Höhe 65.5 mm
Länge 52 mm
Leiterquerschnitt 4,0 mm²
Nennstrom 32 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland FR
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
