1SNA115490R1300 | TE Connectivity

Terminal block, 1SNA115490R1300

Order No.: 71P4135
MPN:
1SNA115490R1300
Series: SNA
TE Connectivity

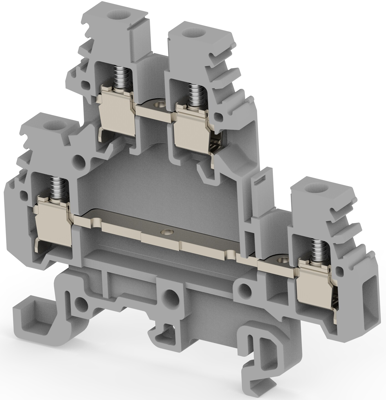

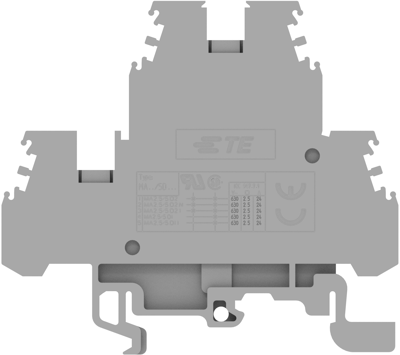

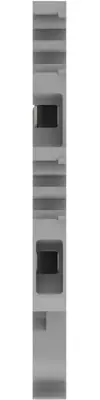

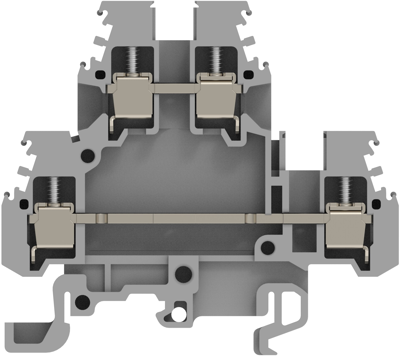

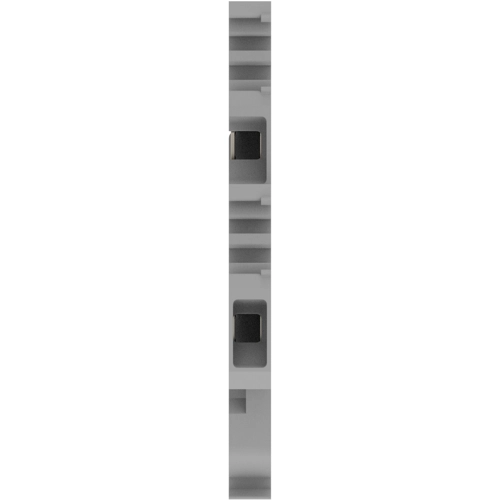

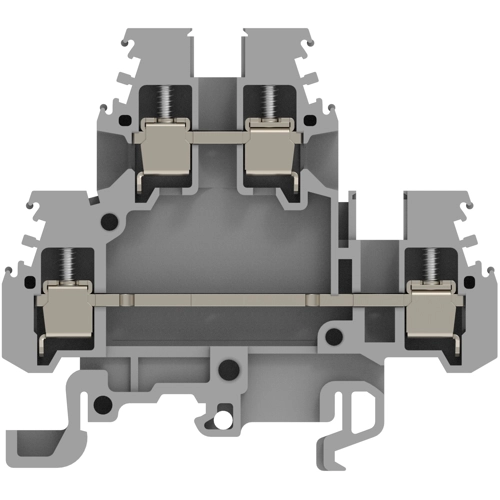

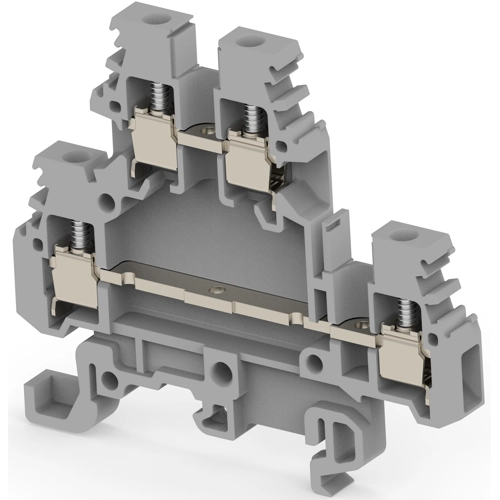

1SNA115490R1300 TE Connectivity Series Terminals Image 1
1SNA115490R1300 TE Connectivity Series Terminals Image 2
1SNA115490R1300 TE Connectivity Series Terminals Image 3
1SNA115490R1300 TE Connectivity Series Terminals Image 4
1SNA115490R1300 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
6.8068 € *
Available: 0 pcs.
Available in 5 Days: 114 pcs.
Leadtime: 4 Weeks **
Total Price:
6.81 € *
Price list
Quantity
Price per unit*
15 pcs.
6.8068 €
50 pcs.
4.8552 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 1SNA115490R1300, TE Connectivity

The 1SNA115490R1300 is a screw clamp terminal block save space with double deck terminal and 2 independent circuits in just 6 mm spacing.

Features

  • Snap onto symmetrical and asymmetrical rails
Technical specifications
Connection screw connection
Version screw terminal block
AWG cross-section AWG 12
Rated Voltage 630 V
Rated surge voltage 8 kV
Width 5 mm
Colour gray
Height 65.5 mm
Length 52 mm
Cable cross-section 2.5 mm²
Rated current 24 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin FR
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
