1SNA400190R0100 | TE Connectivity

Screw terminal block, screw connection, 10 mm², 2 pole, 57 A, 8 kV, white, 1SNA400190R0100

Order No.: 71P4286
EAN: 4099891649098
MPN:
1SNA400190R0100
Series: SNA
TE Connectivity

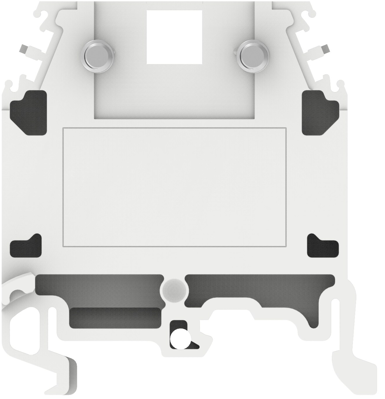

1SNA400190R0100 TE Connectivity Series Terminals Image 1

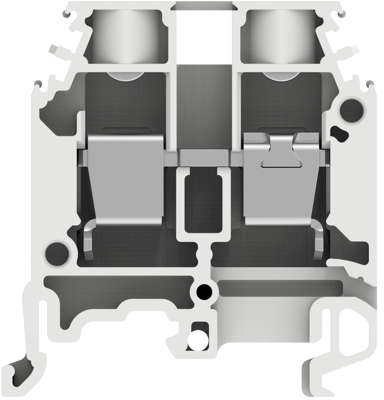

1SNA400190R0100 TE Connectivity Series Terminals Image 2

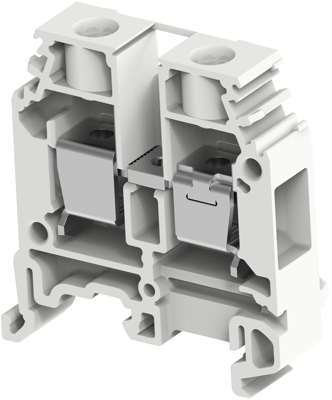

1SNA400190R0100 TE Connectivity Series Terminals Image 3

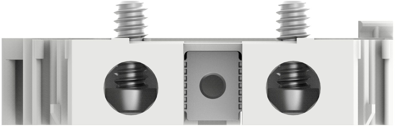

1SNA400190R0100 TE Connectivity Series Terminals Image 4

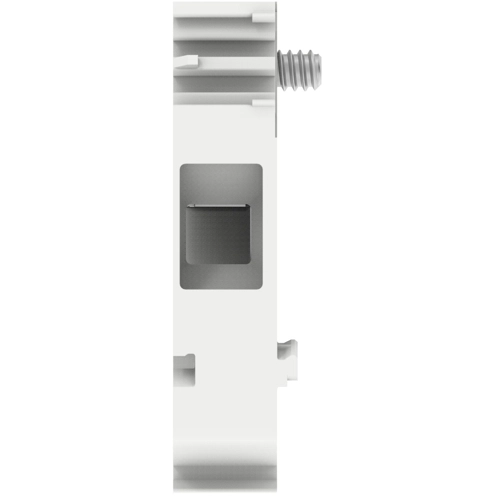

1SNA400190R0100 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
5.8310 € *
Available: 0 pcs.
Available in 5 Days: 55 pcs.
Leadtime: 48 Weeks **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
20 pcs.
5.8310 €
50 pcs.
3.5105 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 1SNA400190R0100, TE Connectivity

Modular terminal block, Feed-Through, Screw clamp terminal block, White, Product spacing 10 mm, 2 Position, Screw terminal.

Features

  • Snap onto symmetrical and asymmetrical rails
Technical specifications
Connection screw connection
Version screw terminal block
AWG cross-section AWG 6
Rated Voltage 1000 V
Rated surge voltage 8 kV
Width 10 mm
Colour white
Height 44.5 mm
Length 40.5 mm
Cable cross-section 10 mm²
Rated current 57 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin FR
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
