1SNK506062R0000 | TE Connectivity

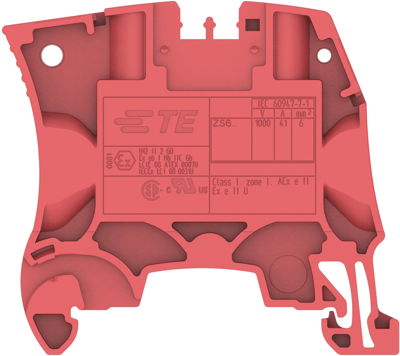

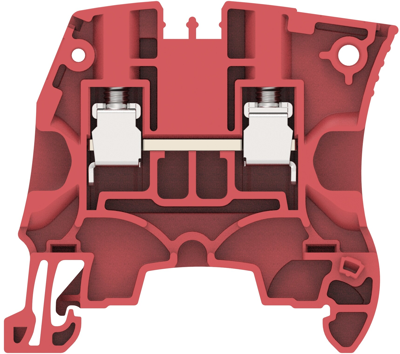

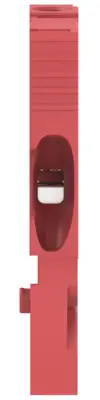

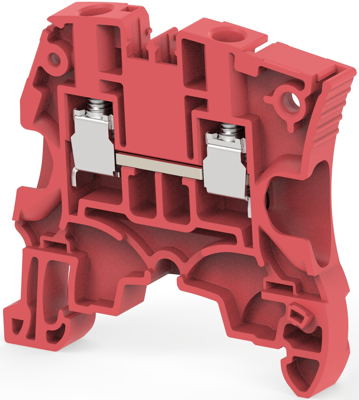

Screw terminal block, screw connection, 6.0 mm², 2 pole, 41 A, 8 kV, red, 1SNK506062R0000
Unit Price (€ / pc.)
2.7251 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
10 pcs.
2.5109 €
50 pcs.
2.2610 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1SNK506062R0000, TE Connectivity
The 1SNK506062R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Connection | Schraubanschluss | |
| Version | Schraubklemmleiste | |
| AWG cross-section | AWG 10 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 6 mm | |
| Colour | rot | |
| Height | 53 mm | |
| Length | 47.3 mm | |
| Cable cross-section | 6,0 mm² | |
| Rated current | 41 A | |
| Pin number | 2-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
