1SNK508010R0000 | TE Connectivity
Screw terminal block, screw connection, 10 mm², 2 pole, 57 A, 8 kV, gray, 1SNK508010R0000
Unit Price (€ / pc.)
1.9278 € *
Available: 0 pcs.
Available in 5 Days: 211 pcs.
Leadtime: 4 Weeks **
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
50 pcs.
1.9278 €
500 pcs.
1.6660 €
*incl. VAT plus shipping costs
**Subject to prior sale

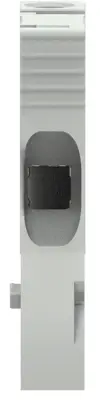

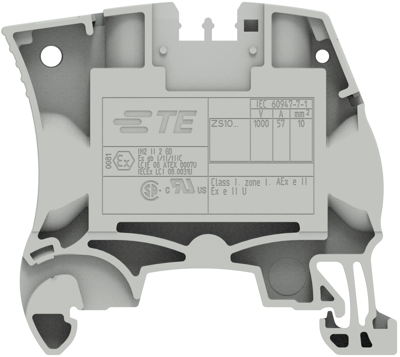

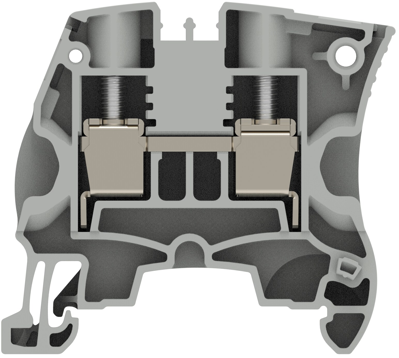

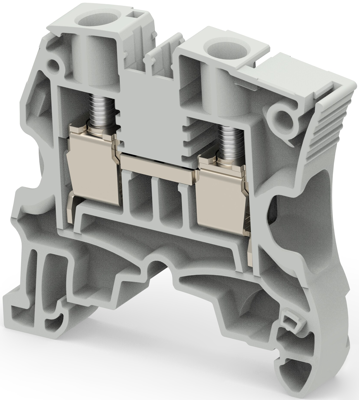

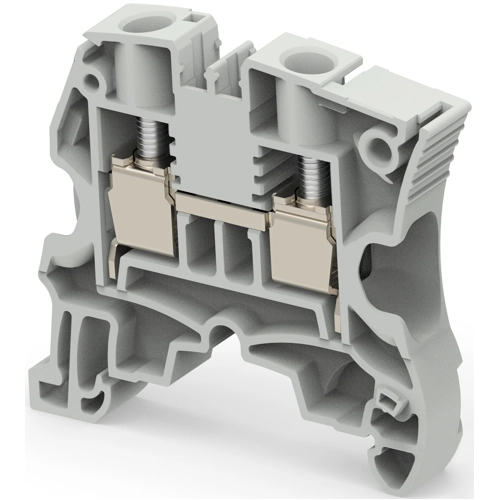

PCB Terminal, 1SNK508010R0000, TE Connectivity
The 1SNK508010R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Schraubklemmleiste | |
| AWG-Leiterquerschnitt | AWG 6 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 8 mm | |
| Farbe | grau | |
| Höhe | 53 mm | |
| Länge | 47.3 mm | |
| Leiterquerschnitt | 10 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
