1SNK508066R0000 | TE Connectivity

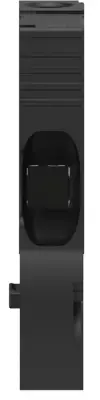

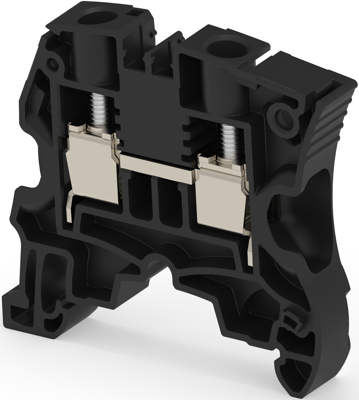

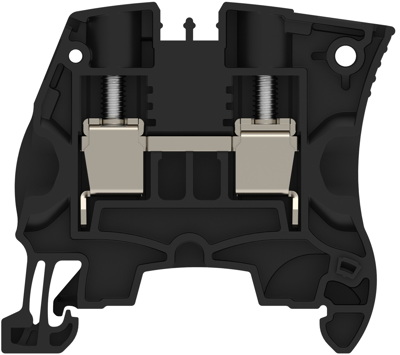

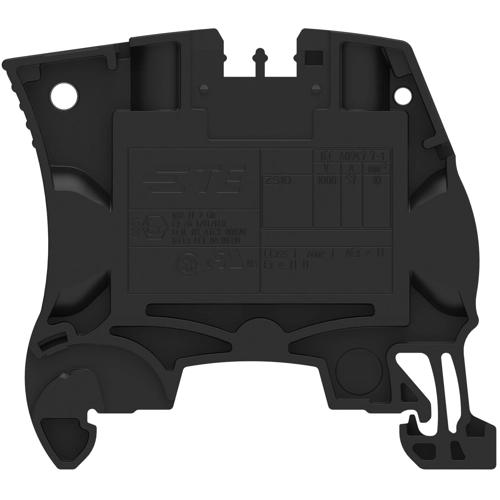

Screw terminal block, screw connection, 10 mm², 2 pole, 57 A, 8 kV, black, 1SNK508066R0000
Unit Price (€ / pc.)
3.8199 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
3.82 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8199 €
10 pcs.
3.5105 €
50 pcs.
3.1654 €
100 pcs.
2.8441 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1SNK508066R0000, TE Connectivity
The 1SNK508066R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Schraubklemmleiste | |
| AWG-Leiterquerschnitt | AWG 6 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 8 mm | |
| Farbe | schwarz | |
| Höhe | 53 mm | |
| Länge | 47.3 mm | |
| Leiterquerschnitt | 10 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
