1SNK512020R0000 | TE Connectivity

Terminal block, 1SNK512020R0000

Order No.: 71P4349
MPN:
1SNK512020R0000
Series: SNK
TE Connectivity

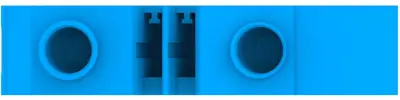

1SNK512020R0000 TE Connectivity Series Terminals Image 1

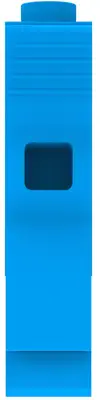

1SNK512020R0000 TE Connectivity Series Terminals Image 2

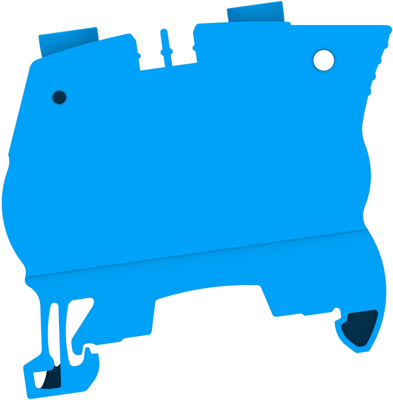

1SNK512020R0000 TE Connectivity Series Terminals Image 3

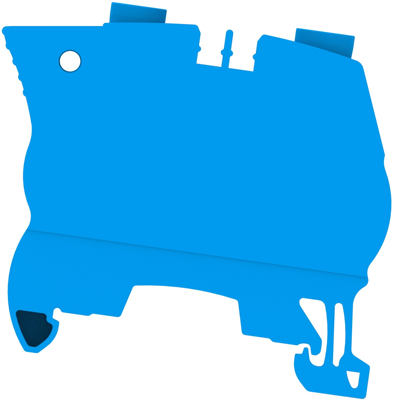

1SNK512020R0000 TE Connectivity Series Terminals Image 4

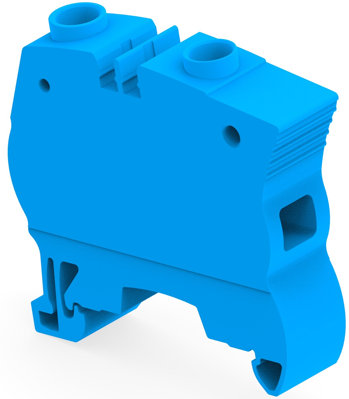

1SNK512020R0000 TE Connectivity Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Available in 5 Days: 59 pcs.
Leadtime: 4 Weeks **
Total Price:
3.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
3.7009 €

PCB Terminal, 1SNK512020R0000, TE Connectivity

The 1SNK512020R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.

Features

  • Easy to install
  • Optimized logistics
Technical specifications
Connection screw connection
Version screw terminal block
AWG cross-section AWG 3
Rated Voltage 1000 V
Rated surge voltage 8 kV
Width 12 mm
Colour blue
Height 56.1 mm
Length 48.8 mm
Cable cross-section 16 mm²
Rated current 76 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin FR
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
