1SNK705210R0000 | TE Connectivity

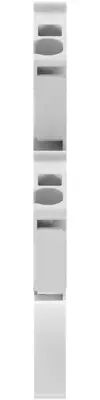

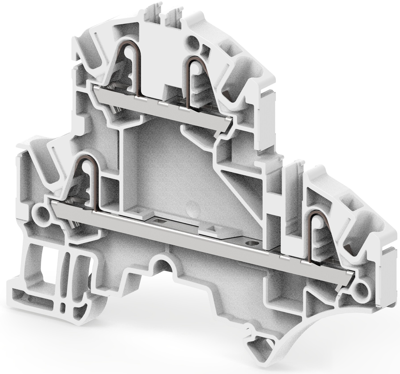

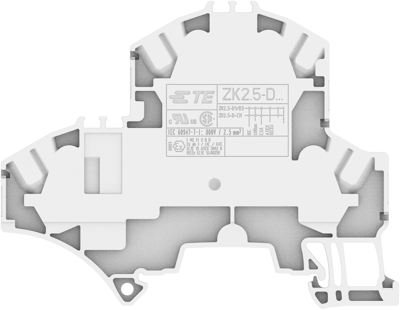

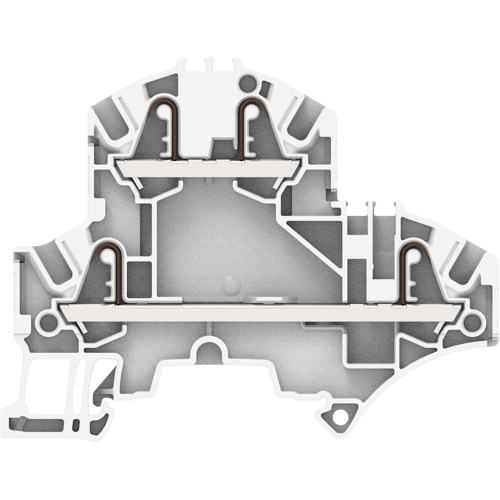

PI spring terminal block, push-in spring connection, 2.5 mm², 4 pole, 24 A, 8 kV, gray, 1SNK705210R0000
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.5585 €
50 pcs.
2.2967 €
100 pcs.
2.0706 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1SNK705210R0000, TE Connectivity
The 1SNK705210R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Anschluss | Push-in Federanschluss | |
| Ausführung | PI-Federklemmleiste | |
| AWG-Leiterquerschnitt | AWG 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 78.5 mm | |
| Länge | 60.2 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
