1SNK706020R0000 | TE Connectivity

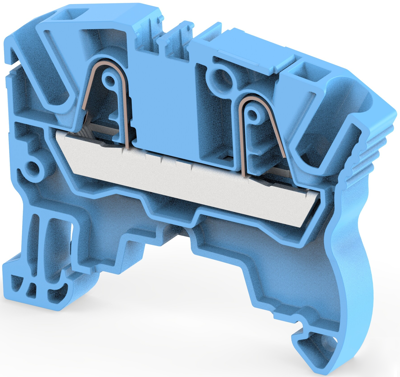

PI spring terminal block, push-in spring connection, 4.0 mm², 2 pole, 32 A, 8 kV, blue, 1SNK706020R0000
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1SNK706020R0000, TE Connectivity
The 1SNK706020R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Anschluss | Push-in Federanschluss | |
| Ausführung | PI-Federklemmleiste | |
| AWG-Leiterquerschnitt | AWG 10 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6 mm | |
| Farbe | blau | |
| Höhe | 55.3 mm | |
| Länge | 41.1 mm | |
| Leiterquerschnitt | 4,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
