1SNK805751R0000 | TE Connectivity

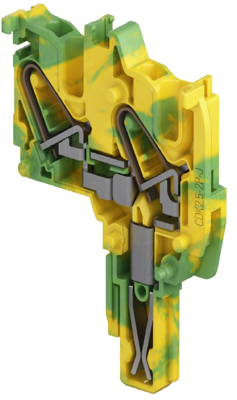

Modular terminal block, push-in connection, 2.5 mm², 2 pole, 24 A, 8 kV, yellow/green, 1SNK805751R0000
Unit Price (€ / pc.)
2.9036 € *
Available: 0 pcs.
Available in 5 Days: 550 pcs.
Leadtime: 10 Weeks **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
35 pcs.
2.9036 €
50 pcs.
2.5704 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1SNK805751R0000, TE Connectivity
The 1SNK805751R0000 is a screw clamp terminal block that offers rationalized functions and accessories while serving a large scope of applications. Asymmetrical design avoid mounting and wiring errors. This product has Intuitive codification, simplified catalogs and large technical data base.
Features
- Easy to install
- Optimized logistics
Technical specifications
| Connection | push-in connection | |
| Version | modular terminal block | |
| AWG cross-section | AWG 12 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Colour | yellow/green | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
