2271552-2 | TE Connectivity
Terminal block, 2271552-2
Order No.: 71P6094
EAN: 4099891649739
MPN:
2271552-2
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Available in 5 Days: 1,140 pcs.
Leadtime: 8 Weeks **
Total Price:
240.98 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6065 €
300 pcs.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminal block, 2271552-2, TE Connectivity

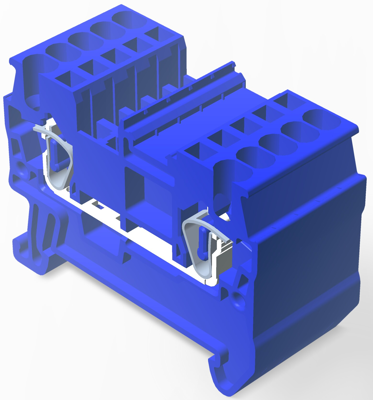

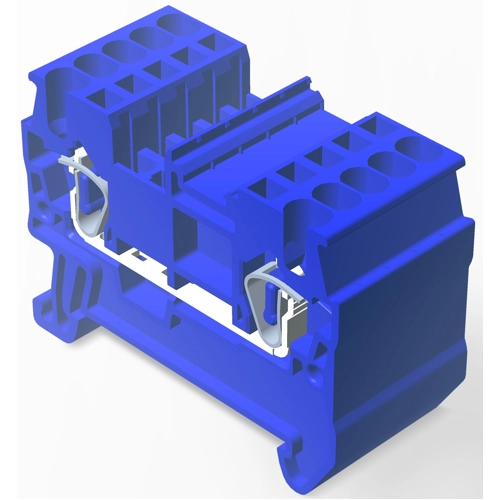

Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, UL 94V-0.
Technical specifications
| Connection | Schnellanschluss | |
| Version | Federklemmleiste | |
| AWG cross-section | AWG 28 bis 14 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 6 kV | |
| Width | 4.15 mm | |
| Colour | blau | |
| Height | 35.4 mm | |
| Length | 48.8 mm | |
| Cable cross-section | 0,08-1,5 mm² | |
| Rated current | 15 A | |
| Pin number | 1-polig |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
