2271553-3 | TE Connectivity
Terminal block, 2271553-3
Order No.: 71P6100
EAN: 4099891649791
MPN:
2271553-3
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Available in 5 Days: 294 pcs.
Leadtime: 8 Weeks **
Total Price:
211.52 € *
Price list
Quantity
Price per unit*
75 pcs.
2.8203 €
200 pcs.
2.7013 €
*incl. VAT plus shipping costs
**Subject to prior sale

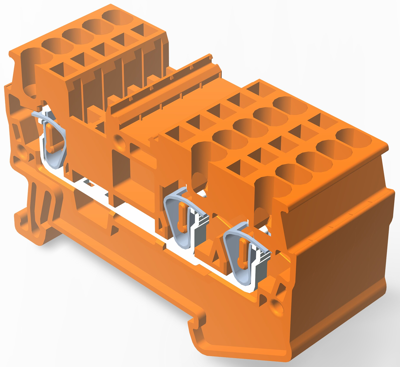

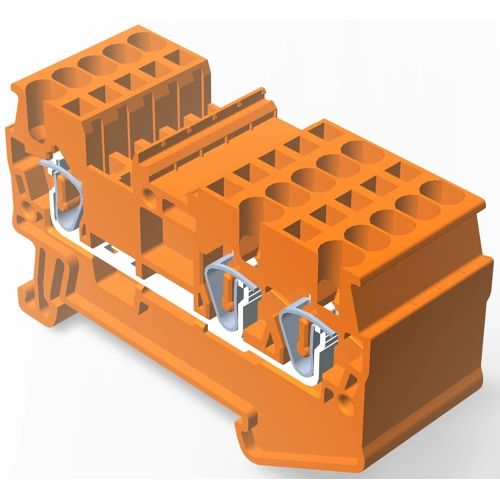

Terminal block, 2271553-3, TE Connectivity
Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, UL 94V-0.
Technical specifications
| Connection | Schnellanschluss | |
| Version | Federklemmleiste | |
| AWG cross-section | AWG 28 bis 14 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 6 kV | |
| Width | 4.15 mm | |
| Colour | orange | |
| Height | 35.4 mm | |
| Length | 60.7 mm | |
| Cable cross-section | 0,08-1,5 mm² | |
| Rated current | 15 A | |
| Pin number | 1-polig |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
