2271555-3 | TE Connectivity
Terminal block, 2271555-3
Order No.: 71P6107
EAN: 4099891649869
MPN:
2271555-3
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
56 pcs.
1.6065 €
300 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

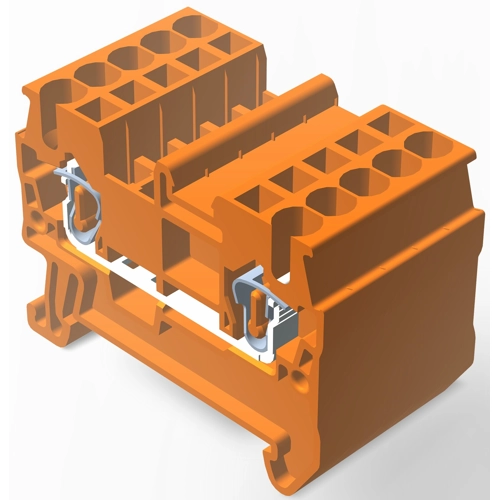

Terminal block, 2271555-3, TE Connectivity
Spring terminal block, 1 position, Quick connect, Standard, Matte tin, DIN Rail, UL 94V-0.
Technical specifications
| Connection | quick connection | |
| Version | spring terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 8 kV | |
| Width | 5.15 mm | |
| Colour | orange | |
| Height | 35.4 mm | |
| Length | 48.8 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
