2271558-1 | TE Connectivity
Terminal block, quick connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 2271558-1
Order No.: 71P6115
EAN: 4099891649944
MPN:
2271558-1
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Available in 5 Days: 1,289 pcs.
Leadtime: 8 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
38 pcs.
2.3562 €
200 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale

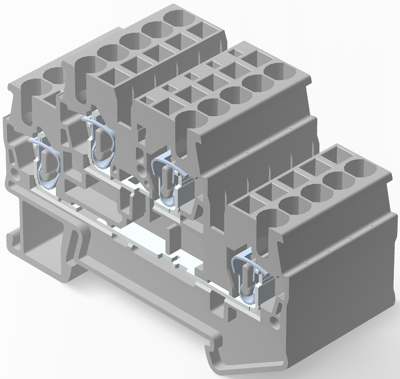

Terminal block, 2271558-1, TE Connectivity
Spring terminal block, Standard, 2 position, Copper, Quick connect, DIN Rail, Matte tin.
Technical specifications
| Connection | quick connection | |
| Version | spring terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.15 mm | |
| Colour | gray | |
| Height | 45.9 mm | |
| Length | 67.8 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
