2271560-4 | TE Connectivity
Terminal block, 2271560-4
Order No.: 71P6125
EAN: 4099891650049
MPN:
2271560-4
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
3.70 € *
Price list
Quantity
Price per unit*
25 pcs.
3.7009 €
150 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale

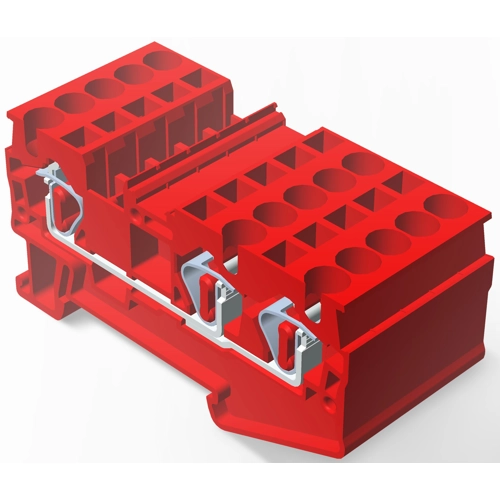

Terminal block, 2271560-4, TE Connectivity
Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Matte tin.
Technical specifications
| Connection | quick connection | |
| Version | spring terminal block | |
| AWG cross-section | AWG 28 to 10 | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 8 kV | |
| Width | 6.15 mm | |
| Colour | red | |
| Height | 35.4 mm | |
| Length | 71.7 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 30 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
