2271591-1 | TE Connectivity
Terminal block, quick connection, 0.2-16 mm², 1 pole, 65 A, 8 kV, gray, 2271591-1
Order No.: 71P6143
EAN: 4099891650223
MPN:
2271591-1
Unit Price (€ / pc.)
7.4494 € *
Available: 0 pcs.
Available in 5 Days: 1,498 pcs.
Leadtime: 8 Weeks **
Total Price:
7.45 € *
Price list
Quantity
Price per unit*
15 pcs.
7.4494 €
60 pcs.
6.8544 €
*incl. VAT plus shipping costs
**Subject to prior sale

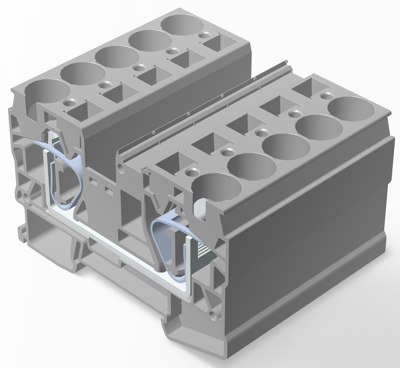

Terminal block, 2271591-1, TE Connectivity
Spring terminal block, Standard, 1 position, Copper, Quick connect, DIN Rail, Matte tin.
Technical specifications
| Connection | quick connection | |
| Version | spring terminal block | |
| Rated Voltage | 600 V | |
| Rated surge voltage | 8 kV | |
| Width | 12.2 mm | |
| Colour | gray | |
| Height | 50.6 mm | |
| Length | 80.6 mm | |
| Cable cross-section | 0.2-16 mm² | |
| Rated current | 65 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
