2271679-4 | TE Connectivity
Terminal block, 2271679-4
Order No.: 71P6161
EAN: 4099891650384
MPN:
2271679-4
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 8 Weeks **
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
21 pcs.
4.3197 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminal block, 2271679-4, TE Connectivity

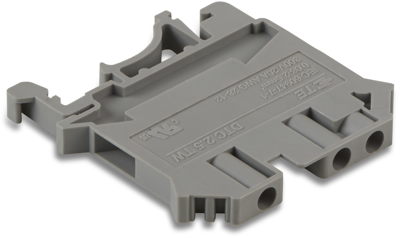

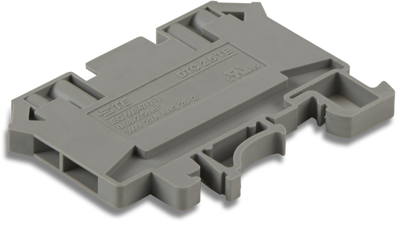

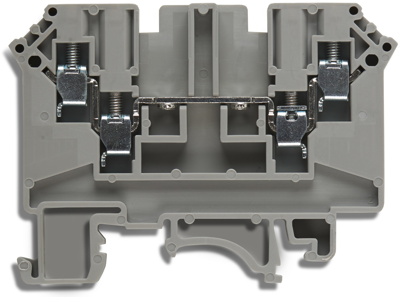

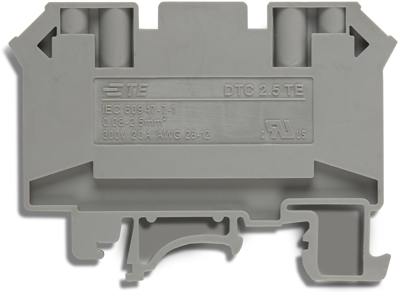

Screw terminal block, Standard, 1 position, Brass, Quick connect, DIN Rail, Steel.
Technical specifications
| Connection | quick connection | |
| Version | screw terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 300 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Colour | orange | |
| Height | 45.8 mm | |
| Length | 63.6 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
